ID-2309F Plastic Electronics Enclosure

Small flanged ABS enclosure with extra-deep cover

Part
ID-2309FMB
External Dimensions 3.0 x 2.0 x 1.4 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $4.26
10 - 49 $3.53
50 - 99 $3.08
100 - 249 $2.57
250 - 499 $2.41
More
Part
ID-2309FMB
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

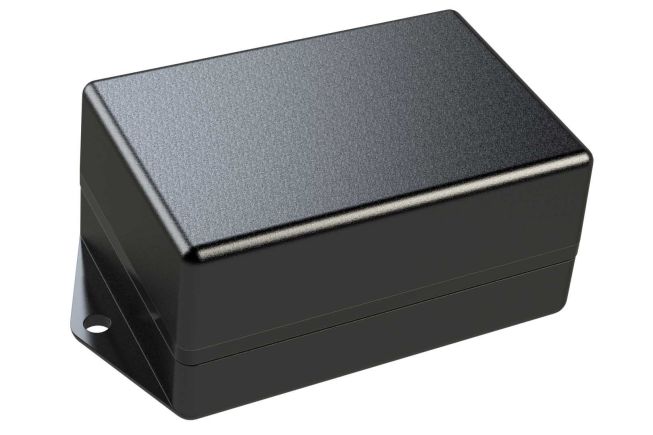

The ID-2309F is crafted from black flame retardant ABS plastic, featuring 4 PCB mounting bosses in the base, and molded on flanges for easy surface mounting. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for potting applications.
Specifications for
ID-2309FMB
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
3.0 x 2.0 x 1.4 in
76 x 51 x 38 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
2.8 x 1.8 x 1.3 in
72 x 47 x 34 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.09 in
Weight 0.09 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Indoor/Outdoor Use Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, cover, and 4 screws
Screw Torque 4 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base
Ratings
Flame Rating UL94 V-0
Inventory for
ID-2309FMB
In stock
Number of Units in Stock Hover me Stock available to ship within 1-2 business days 1878
Additional Stock
Ready To Ship in One Week 426
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
