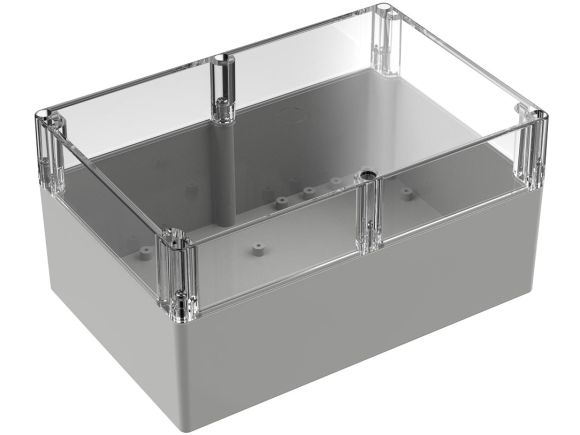

WC-41 Outdoor Enclosure with Clear Cover

Deep electronics case with transparent cover for outdoor IoT applications

Part
WC-41*1508
External Dimensions 9.45 x 6.30 x 4.72 in
In stock
Color Gray with Clear Cover
QtyPrice / Unit
1 - 9 $49.04
10 - 49 $42.17
50 - 99 $37.53
100 - 249 $33.78
250 - 499 $32.09
More
Part
WC-41*1508
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The WC-41 deep electronic case is constructed from impact-resistant polycarbonate, offering a gray base, and a clear cover that has a silicone rubber gasket for protection against harsh outdoor conditions. Secure your PCB easily utilizing the 25 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WC-41*1508
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
9.45 x 6.30 x 4.72 in
240 x 160 x 120 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
9.10 x 5.96 x 4.46 in
231 x 151 x 113 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.114 in
Weight 1.68 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base Polycarbonate
Cover Polycarbonate
Gasket Silicone
Assembly Screws Stainless steel
Application
Application Outdoor use
UV Resistant Yes
Waterproof Yes
General
Series
Color Gray with Clear Cover
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, gasketed cover, and 6 screws
Screw Torque 8 in lbs
External Mounting Style Optional surface mounting kit (sold separately)
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E194432
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP65
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model WC-41 STEP
2D Drawing DWG WC-41 DWG
2D Drawing PDF WC-41 PDF
Other Files WC-41 Printing Template
Material Specs
WC & WP Series Material Specs Polycarbonate Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel WX-42
Adhesive PCB Mounting Standoffs MB-01-20
Cable Management & Venting Accessories Cable Glands & Vents
Surface Mounting Kit WP-90
Mounting Boss Screws
PCB Mounting Boss Screws (bosses with brass inserts) SCREWS-M3-6-100
PCB Mounting Boss Screws (bosses without brass inserts) SCREWS-MBR-100
