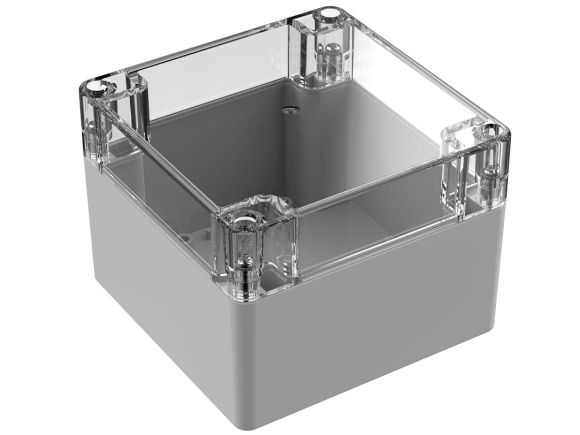

WC-37 WC Series Outdoor Enclosures with Clear Covers

4.72 x 4.72 x 3.53 in. / 119.89 x 119.89 x 89.66 mm. / 0.61 lbs

The WC-37 offers

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  • Internal holes molded into 4 corners, outside of the sealed cavity, can be used to mount the enclosure
  • Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Optional internal mounting panel WX-58 available

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-37*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses
