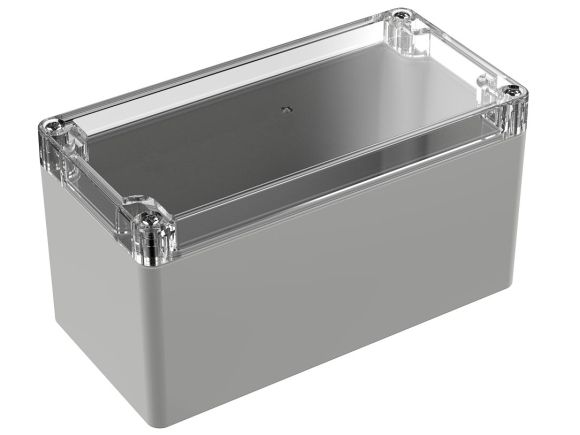

WC-33 Outdoor Enclosure with Clear Cover
6.30 x 3.15 x 3.35 in / 160.02 x 80.01 x 85.09 mm. / 0.60 lbs
View Details In stock
- UL Listed to UL508-4x specifications (File E194432)
- Meets NEMA 1, 2, 4, 4X, 12 & 13 specifications
- Meets IP65 & IP66 specifications
- Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
- Internal holes molded into 4 corners, outside of the sealed cavity, can be used to mount the enclosure
- Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
- Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
- Durable, impact-resistant UV Stabilized Polycarbonate material
- Assembly includes base, gasket, cover, and 4 enclosure screws
Optional Accessories Include:
- Internal mounting panel and screws - WX-54
- Internal PCB mounting boss screws (thread forming) - SCREWS-MBR-100
- Internal PCB mounting boss screws (threaded for bosses with brass inserts) - SCREWS-M3-6-100
- Cable glands, seals, plugs and venting accessories - Cable Management and Venting
- Adhesive PCB mounting standoffs - MB-01-20
- Flange kit for surface mounting - WP-90
Models, Drawings, Material Specs and Other Files
3D Model WC-33 STEP
2D Drawing WC-33 DWG
2D Drawing WC-33 PDF
Material Spec WC Material Specs
Other Files WC-33 Printing Template
