External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.53 x 3.54 x 3.15 in |
External Dimensions (mm) | 115 x 90 x 80 mm |
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.25 x 3.27 x 2.94 in |
Internal Dimensions (mm) | 108 x 83 x 75 mm |
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.124 in |
Weight | 0.48 lbs |
2d Drawing PDF | Download 2D Drawing PDF |
Download Material Specs | Download Material Specs |
Base | Polycarbonate |
Cover | Polycarbonate |
Gasket | Silicone |
Assembly Screws | Stainless steel |
Application | Outdoor use |
UV Resistant | Yes |
Waterproof | Yes |

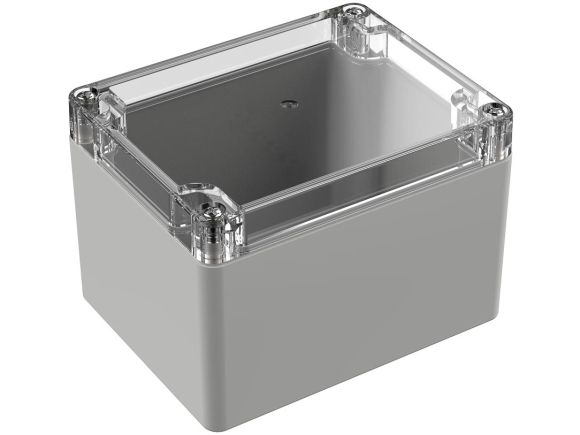

3D Model | WC-28 STEP |
2D Drawing DWG | WC-28 DWG |
2D Drawing PDF | WC-28 PDF |
Other Files | WC-28 Printing Template |
WC & WP Series Material Specs | Polycarbonate Specs |
Internal Mounting Panel | WX-18 |
Adhesive PCB Mounting Standoffs | MB-01-20 |
Cable Management & Venting Accessories | Cable Glands & Vents |
Surface Mounting Kit | WP-90 |
PCB Mounting Boss Screws (bosses with brass inserts) | SCREWS-M3-6-100 |
PCB Mounting Boss Screws (bosses without brass inserts) | SCREWS-MBR-100 |
