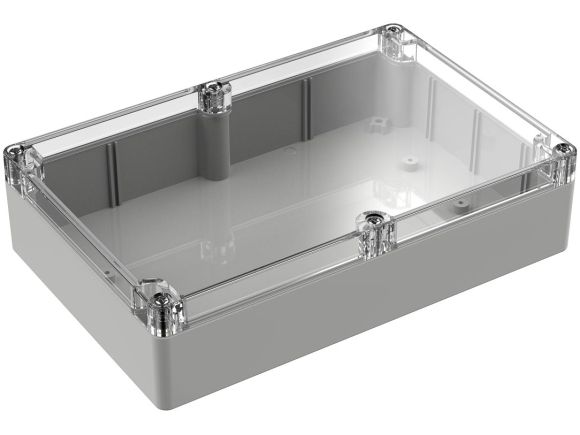

WC-25 Outdoor Enclosure with Clear Cover
Medium-sized shallow electronic case with clear cover
Product Overview
The WC-25 medium-sized shallow enclosure is constructed from impact-resistant polycarbonate, offering a gray base, and a clear cover that has a silicone rubber gasket for protection against harsh outdoor conditions. Secure your PCB easily utilizing the 8 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WC-25*1508
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
8.7 x 5.7 x 2.1 in
222 x 146 x 55 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
8.4 x 5.4 x 1.9 in
214 x 138 x 49 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.123 in |
| Weight | 0.94 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Polycarbonate |
| Cover | Polycarbonate |
| Gasket | Silicone |
| Assembly Screws | Stainless steel |
Application
| Indoor/Outdoor Use | Outdoor use |
| UV Resistant | Yes |
| Waterproof | Yes |
Inventory for
WC-25*1508
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 27 |
| Ready To Ship in 2 Weeks | 541 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 16 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | WC-25 STEP |
| 2D Drawing DWG | WC-25 DWG |
| 2D Drawing PDF | WC-25 PDF |
| Other Files | WC-25 Printing Template |
Material Specs
| WC & WP Series Material Specs | Polycarbonate Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA WA/WC/WP Series |
Accessory Guide
Optional Accessories
| Internal Mounting Panel | WX-26 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
| Surface Mounting Kit | WP-90 |
Mounting Boss Screws
| PCB Mounting Boss Screws (bosses with brass inserts) | SCREWS-M3-6-100 |
| PCB Mounting Boss Screws (bosses without brass inserts) | SCREWS-MBR-100 |
