WA-23F ABS Indoor NEMA Enclosure

ABS watertight enclosure with surface mounting flanges

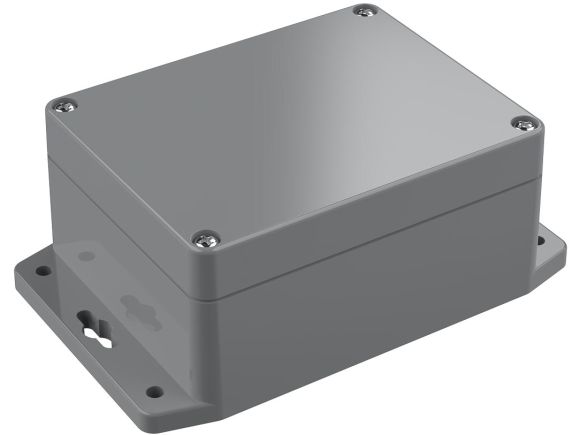

WA-23F Electronic Enclosure
WA Series
Part
WA-23F*16
External Dimensions 4.5 x 3.5 x 2.1 in
In stock
Color Gray
Check Inventory
QtyPrice / Unit
1 - 9 $13.82
10 - 49 $11.88
50 - 99 $10.57
100 - 249 $9.52
250 - 499 $9.03
More
Check items to add to the cart or
  1. WX-18 Metallic internal mounting panel for Polycase NEMA enclosures - 4.02 x 3.03 x 0.06 inches
    WX-18 Panel for WA/WP/WC Series Enclosures
    $9.46
    Increase Down Increase Up
  2. MBR screws
    PCB Mounting Boss Screws (bag of 100)
    $4.22 per bag of 100
    Increase Down Increase Up
Part
WA-23F*16
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Compare WishList
Product Overview
The WA-23F watertight enclosure is constructed from dark grey flame-retardant ABS plastic, it comes standard with molded on flanges and a silicone rubber gasket for protection against adverse indoor conditions. Secure your PCB easily utilizing the 4 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WA-23F*16
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.5 x 3.5 x 2.1 in
115 x 90 x 55 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
4.2 x 3.2 x 1.9 in
107 x 82 x 49 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.119 in
Weight 0.39 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Gasket Silicone
Assembly Screws Stainless steel
Application
Indoor/Outdoor Use Indoor use
UV Resistant No
Waterproof Yes
General
Series
WA Series
Color Gray
Country of Origin Taiwan
Assembly Details
Components Include Hover me Most components require assembly upon delivery. Base, gasketed cover, and 4 screws
Cover Screw Torque 8 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E194432
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP65
Flame Rating UL94 HB
Inventory for
WA-23F*16
In stock
Number of Units in Stock Hover me Stock available to ship within 1-2 business days
Additional Stock
Ready To Ship in 2 Weeks 1148
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 2 to 16 weeks

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. You can also consider USA-made comparable alternatives HN Series and ML Series which have shorter lead times.

Downloads

Models & Drawings
3D Model WA-23F STEP
2D Drawing DWG WA-23F DWG
2D Drawing PDF WA-23F PDF
Other Files WA-23F Printing Template
Material Specs
SN & WA Series Material Specs ABS Plastic Specs
Guides
Screw Torque Guide Screw Torque
Certifications & Testing
USMCA Certificate of Origin USMCA SN/WA/WC/WP Series

Accessory Guide

Optional Accessories
Internal Mounting Panel WX-18
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Cable Management & Venting Accessories Cable Glands & Vents
Frequently Bought Together
  1. UL recognized hole plug for enclosures New
    Hole Plug
    As low as $1.11
    Choose Option
    Add to Wish List Add to Compare
  2. MBR screws
    PCB Mounting Boss Screws (bag of 100)
    As low as $2.71
    Add to Wish List Add to Compare
  3. WX-18 Metallic internal mounting panel for Polycase NEMA enclosures - 4.02 x 3.03 x 0.06 inches
    WX-18 Panel for WA/WP/WC Series Enclosures
    As low as $5.52
    Add to Wish List Add to Compare
  4. Air Vent
    UA-021 Air Vent
    As low as $3.07
    Add to Wish List Add to Compare
  5. Gray plastic cable glands for enclosures - rated NEMA 4X & 6P New
    CG3 Cable Glands
    As low as $1.09
    Choose Option
    Add to Wish List Add to Compare

Compare with Similar Items

Customer Rating
External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Country of Origin
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Color
Material
Application
NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Code equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org or information available from the manufacturer.
Mounting Style
Internal Mounting Option
Features
WA-23F Electronic Enclosure WA-23F ABS Indoor NEMA Enclosure
4.5 x 3.5 x 2.1 in
4.2 x 3.2 x 1.9 in
Taiwan
2 to 16 weeks
Gray
ABS
Indoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
Watertight plastic electronics enclosure New HN-45 IP-Rated Electronic Enclosure
5.0 x 3.7 x 2.5 in
4.5 x 3.3 x 1.8 in
United States
1 week
Black or Gray
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • None
  • Molded-on flange
  • Stainless steel feet
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Captive stainless-steel screws
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
WA-23 Electronic Enclosure WA-23 ABS Indoor NEMA Enclosure
4.5 x 3.5 x 2.1 in
4.1 x 3.2 x 1.9 in
Taiwan
2 to 16 weeks
Gray
ABS
Indoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
ID-3420F ID-3420F Plastic Electronics Enclosure
4.3 x 3.1 x 2.7 in
4.2 x 2.9 x 2.5 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Thread forming cover screws
EK-52 DIN Rail mount enclosure from Polycase EK-52 DIN Rail Mount Enclosure
4.5 x 3.5 x 2.5 in
4.2 x 3.2 x 2.3 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Clip for DIN rail mounting
  • PCB mounting bosses in base
  • Design captures PCB when enclosure is assembled
  • Versatile clip snaps onto DIN-35 rail
  • Thread forming cover screws
