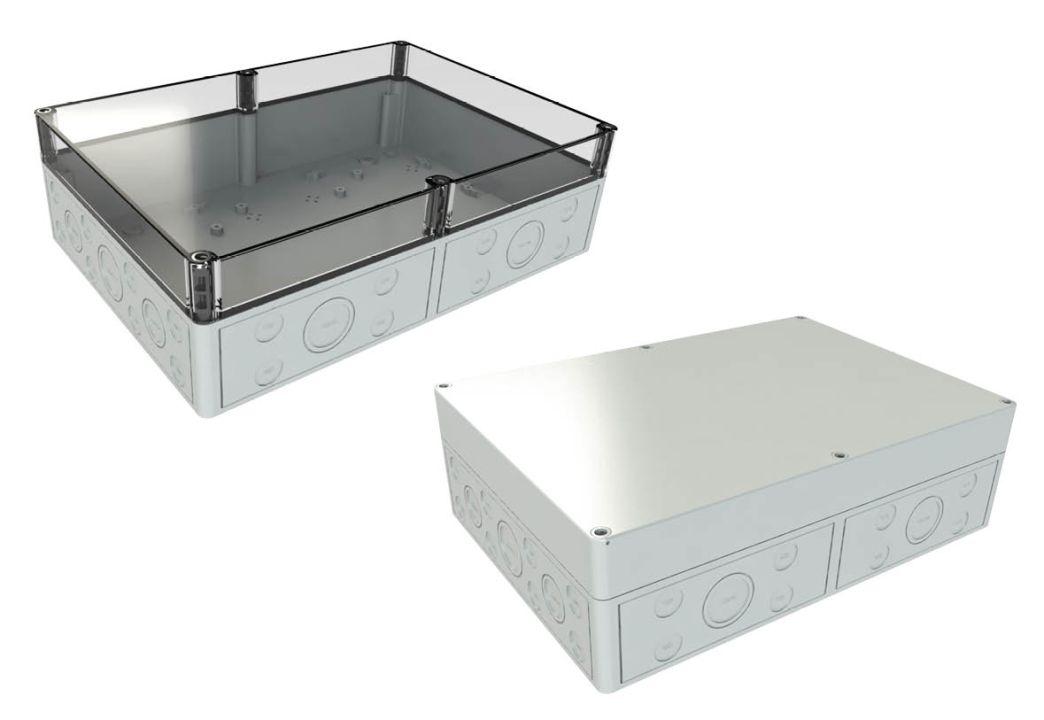

SK-22 SK Series Enclosures with Knockouts

14.21 x 10.00 x 4.37 in. / 360.93 x 254.00 x 111.00 mm. / 2.87 lbs

  • Made in Germany
  • UL Listed to UL 508, NEMA Type 4X & 12K specifications (File E208470)
  • Meets IP66 rating (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (32 x M20, 6 x M32/40, 4 x M25/32)
  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
  • Centrally located bosses for DIN rail mounting
  • Optional accessories include flange kit and internal panel
  • Knockout instructions can be found here

3D Models

2D Drawings

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C  Gray Smoke Clear Gasket
SK-22-02 Fiberglass Reinforced Polycarbonate V-2 5VA Yes   Yes
SK-22-03 Fiberglass Reinforced Polycarbonate / Polycarbonate V-2 5VA   Yes Yes
