What separates a NEMA 3SX enclosure from other NEMA ratings, or even from other NEMA 3 ratings? Click “Read More” for a full profile of what you can expect from a NEMA 3SX enclosure.
What Is a NEMA 3SX Enclosure?
NEMA 3SX is a NEMA rating for protective outdoor electrical enclosures. The base rating is NEMA 3, which means that the enclosure provides a degree of protection against the ingress of water and the ingress of solid foreign objects that makes them suitable for basic outdoor use.
Thus, you can count on a NEMA 3SX enclosure to protect your device’s sensitive electrical components from weather conditions like rain, snow, and sleet. The solid ingress protection of a NEMA 3SX enclosure also protects from hazards such as windblown dust, airborne flyings of debris, and falling dirt.
NEMA 3S and 3SX enclosures also have special design features that help them deal more effectively with the problem of ice formation on the enclosure’s outer body. To achieve a NEMA 3S or 3SX rating, an enclosure’s external mechanisms (such as latches and hinges) must continue to be operable even when ice has formed on them. If your enclosure needs to keep electrical equipment safe in a cold environment prone to freeze-overs, a 3S or 3SX rating can be critical.
Additionally, like other NEMA standards that contain an X (such as NEMA 4X and NEMA 3RX enclosures), NEMA 3SX enclosures include built-in corrosion resistance. This can be important for devices that will experience harsh and corrosive environmental conditions, such as electrical equipment located in marine environments or in industrial facilities where harsh chemicals are frequently used.
Read our full guide to NEMA enclosure types here!
NEMA 3SX Enclosures from Polycase
Polycase offers a variety of electrical enclosures with a NEMA 3SX rating. Explore our full selection of NEMA 3SX-rated enclosures below and don’t forget that we offer fast and affordable customization on most models.
Many of our enclosure models are designed for compliance with more than one NEMA standard. Thus, you’ll find that our NEMA 3SX offerings are also rated with more protective standards such as NEMA 4, NEMA 4X, and even NEMA 6P enclosure ratings. These higher-level ratings allow an enclosure to perform in a variety of potentially hazardous locations, including ones that may involve temporary submersion. By designing our enclosures to address a wide variety of hazards, we give our customers cost-effective protection that they can depend on — even in unexpected circumstances.
Add to Compare Add to Wish ListHD-22F NEMA Polycarbonate EnclosureAs low as $3.88 per unitInternal: 2.1" x 2.1" x 1.3"55 x 55 x 34 mmExternal: 2.6" x 2.6" x 1.6"67 x 67 x 41 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-22F Outdoor NEMA EnclosureAs low as $5.80 per unitInternal: 2.2" x 2.2" x 1.3"58 x 58 x 35 mmExternal: 2.6" x 2.6" x 1.6"67 x 67 x 41 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZH-040404 Hinged NEMA EnclosureAs low as $26.47 per unitInternal: 3.7" x 3.7" x 4.0"95 x 95 x 102 mmExternal: 4.4" x 4.4" x 4.3"112 x 112 x 110 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZQ-040404 Electrical Junction BoxAs low as $25.06 per unitInternal: 3.7" x 3.7" x 4.0"95 x 95 x 102 mmExternal: 4.4" x 4.4" x 4.3"112 x 112 x 110 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-24F Outdoor NEMA EnclosureAs low as $7.99 per unitInternal: 4.1" x 2.2" x 1.7"105 x 57 x 44 mmExternal: 4.5" x 2.6" x 2.0"114 x 67 x 52 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-44F Outdoor NEMA EnclosureAs low as $11.10 per unitInternal: 4.0" x 4.0" x 2.1"103 x 103 x 54 mmExternal: 4.5" x 4.5" x 2.4"114 x 114 x 62 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-34F Outdoor NEMA EnclosureAs low as $8.67 per unitInternal: 4.1" x 3.1" x 1.9"105 x 79 x 49 mmExternal: 4.5" x 3.5" x 2.2"115 x 90 x 57 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-24F NEMA Polycarbonate EnclosureAs low as $5.46 per unitInternal: 4.1" x 2.1" x 1.2"106 x 54 x 30 mmExternal: 4.6" x 2.6" x 1.6"118 x 67 x 41 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-25F NEMA Polycarbonate EnclosureAs low as $5.72 per unitInternal: 4.1" x 2.1" x 1.9"106 x 54 x 49 mmExternal: 4.6" x 2.6" x 2.3"118 x 67 x 60 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-44F NEMA Polycarbonate EnclosureAs low as $7.64 per unitInternal: 4.1" x 4.1" x 1.9"106 x 106 x 48 mmExternal: 4.6" x 4.6" x 2.3"118 x 118 x 60 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-35F NEMA Polycarbonate EnclosureAs low as $6.71 per unitInternal: 5.0" x 3.0" x 1.1"128 x 77 x 29 mmExternal: 5.5" x 3.5" x 1.5"140 x 89 x 38 mmMaterial: Polycarbonate
SHOP THE HP SERIESAMERICAN MADE | HP SERIES
Engineered for reliability, the HP Series offers the weatherproof protection you need at a price you want. Available in black or gray, with an optional clear cover and various external mounting styles to best suit your project.

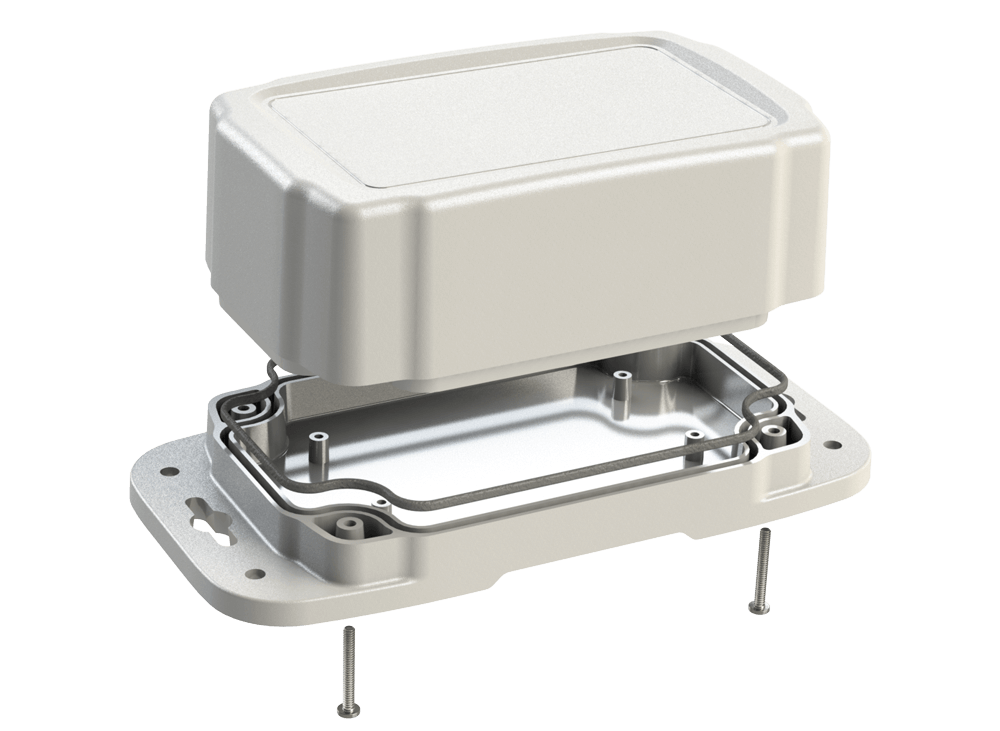

Add to Compare Add to Wish ListHD-36F Polycarbonate Waterproof BoxAs low as $7.04 per unitInternal: 5.0" x 3.0" x 1.8"128 x 77 x 48 mmExternal: 5.5" x 3.5" x 2.3"140 x 89 x 60 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-45F Outdoor NEMA EnclosureAs low as $11.28 per unitInternal: 5.0" x 3.6" x 2.1"129 x 93 x 54 mmExternal: 5.5" x 4.1" x 2.4"140 x 105 x 62 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-46F Outdoor NEMA EnclosureAs low as $12.02 per unitInternal: 5.6" x 4.2" x 2.1"145 x 107 x 54 mmExternal: 6.1" x 4.6" x 2.4"156 x 118 x 62 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZH-060404 Hinged Plastic EnclosureAs low as $33.45 per unitInternal: 5.7" x 3.7" x 4.0"146 x 95 x 102 mmExternal: 6.4" x 4.4" x 4.3"163 x 112 x 110 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZQ-060404 Electrical Junction BoxAs low as $31.68 per unitInternal: 5.7" x 3.7" x 4.0"146 x 95 x 102 mmExternal: 6.4" x 4.4" x 4.3"163 x 112 x 110 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZH-060604 Hinged Junction BoxAs low as $37.74 per unitInternal: 5.7" x 5.7" x 4.8"146 x 146 x 124 mmExternal: 6.4" x 6.4" x 5.2"163 x 163 x 133 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListZQ-060604 Waterproof Junction BoxAs low as $35.79 per unitInternal: 5.7" x 5.7" x 4.8"146 x 146 x 124 mmExternal: 6.4" x 6.4" x 5.2"163 x 163 x 133 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-36F Outdoor NEMA EnclosureAs low as $11.01 per unitInternal: 6.0" x 2.8" x 2.5"154 x 71 x 65 mmExternal: 6.5" x 3.2" x 3.3"165 x 83 x 86 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-46F NEMA Polycarbonate EnclosureAs low as $7.63 per unitInternal: 6.1" x 4.1" x 1.1"156 x 106 x 29 mmExternal: 6.6" x 4.6" x 1.6"168 x 119 x 41 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListHD-45F Black Waterproof BoxAs low as $8.02 per unitInternal: 6.1" x 4.1" x 1.9"156 x 106 x 48 mmExternal: 6.6" x 4.6" x 2.3"168 x 119 x 60 mmMaterial: Polycarbonate
Add to Compare Add to Wish ListML-48F Weatherproof NEMA EnclosureAs low as $12.43 per unitInternal: 7.1" x 4.1" x 1.9"181 x 105 x 49 mmExternal: 7.6" x 4.6" x 2.2"193 x 117 x 57 mmMaterial: Polycarbonate- SHOP THE HP SERIES
AMERICAN MADE | HP SERIES
Engineered for reliability, the HP Series offers the weatherproof protection you need at a price you want. Available in black or gray, with an optional clear cover and various external mounting styles to best suit your project.
