EX-55 Extruded Aluminum Enclosure
Long indoor electronic enclosure made from extruded aluminum
Product Overview

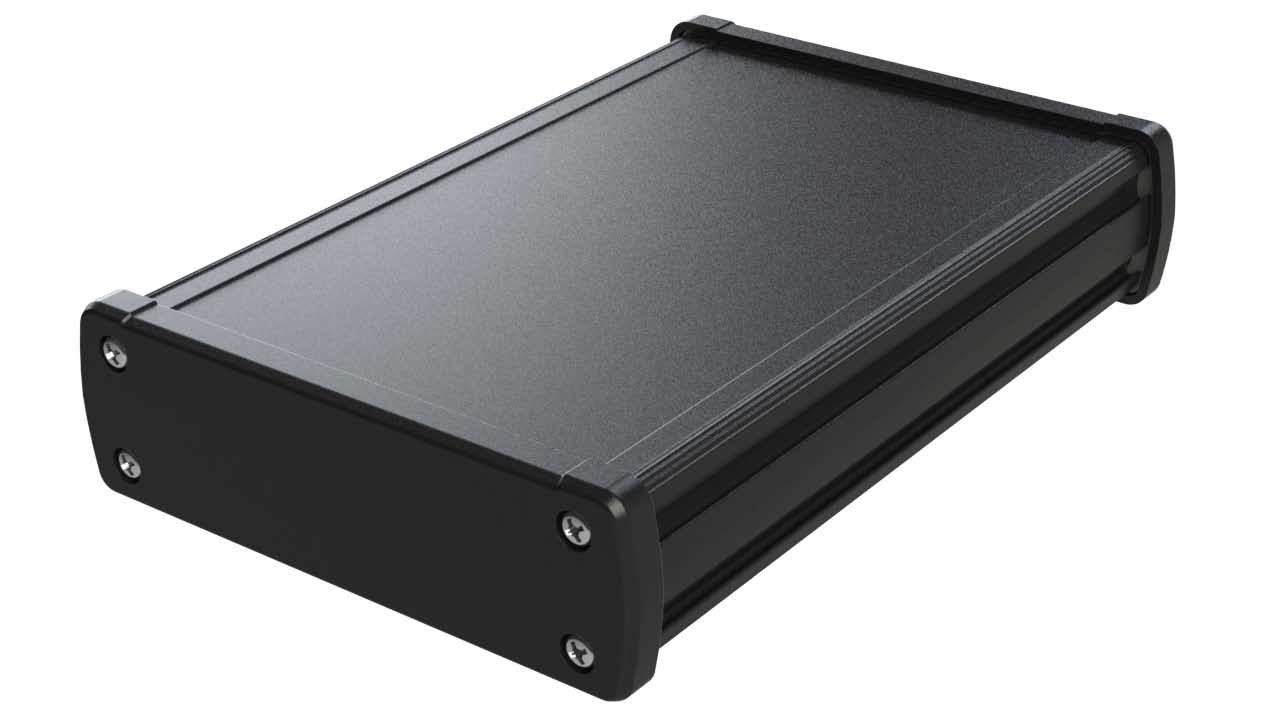

The EX-55 electronic case offers a black anodized extruded aluminum body and 2 ADC-12 diecast powder-coated end caps that are removable to allow for easy access to internal components. The EX series is designed to allow a 0.063" thick PCB to slide into the enclosure, maximizing internal space while the grooved exterior supports quick heat dispersion. Meeting IP66 requirements per manufactures testing, the EX series provides a continuous gasket, helping prevent the intrusion of dust and moisture when assembled. Get the most out of your EX-55 by utilizing the flange kit (sold separately), easily slide the brackets into place where you need them, and secure with the 2 screws provided - giving you added flexibility to the way you mount.
Specifications for
EX-55-01
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 6.65 x 4.48 x 1.39 in 169 x 114 x 35 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 6.35 x 3.72 x 1.00 in 161 x 94 x 25 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.12 in |
| Weight | 0.83 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| End Cap | Powder-coated cast aluminum |
| Gasket | Continuous neoprene |
| Body | Anodized aluminum |
| Assembly Screws | Stainless steel |
Application
| Application | Outdoor use |
Downloads
Models & Drawings
| 3D Model | EX-55 STEP |
| 2D Drawing DWG | EX-55 DWG |
| 2D Drawing PDF | EX-55 PDF |
| Other Files | EX-55 Printing Template |
Material Specs
| EX Series Material Specs | Aluminum Specs |
Accessory Guide
Optional Accessories
| Surface Mounting Kit | EX-70 |
