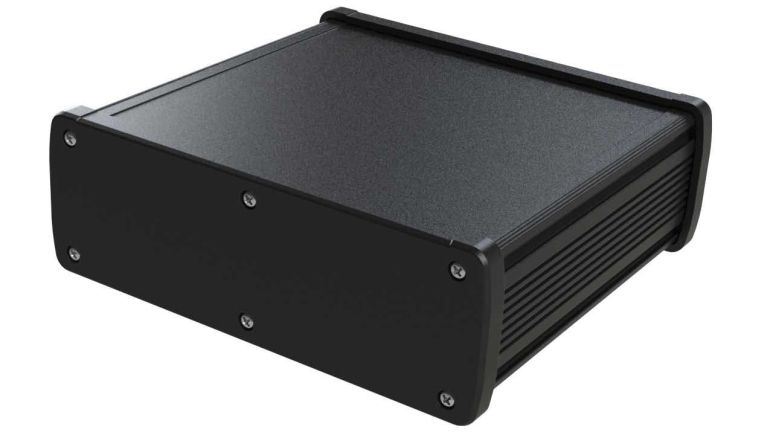

EX-65 Extruded Aluminum Enclosure

Electronic enclosure made from extruded aluminum

Part
EX-65-01
External Dimensions 6.65 x 6.99 x 2.41 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $60.24
10 - 49 $52.41
50 - 99 $47.17
100 - 249 $43.87
250 - 499 $41.67
More
Part
EX-65-01
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The EX-65 desktop-style enclosure offers a black anodized extruded aluminum body and 2 ADC-12 diecast powder-coated end caps that are removable to allow for easy access to internal components. The EX series is designed to allow a 0.063" thick PCB to slide into the enclosure, maximizing internal space while the grooved exterior supports quick heat dispersion. Meeting IP66 requirements per manufactures testing, the EX series provides a continuous gasket, helping prevent the intrusion of dust and moisture when assembled. Get the most out of your EX-65 by utilizing the flange kit (sold separately), easily slide the brackets into place where you need them, and secure with the 2 screws provided - giving you added flexibility to the way you mount.
Specifications for
EX-65-01
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
6.65 x 6.99 x 2.41 in
169 x 178 x 61 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
6.42 x 6.30 x 1.89 in
163 x 160 x 48 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.12 in
Weight 1.84 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
End Cap Powder-coated cast aluminum
Gasket Continuous neoprene
Body Anodized aluminum
Assembly Screws Stainless steel
Application
Application Outdoor use
General
Series
Color Black
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Body, 2 end caps, 2 gaskets, 4 bumpers, 12 washers, and 12 screws
Screw Torque 6 in lbs
External Mounting Style Optional surface mounting kit (sold separately)
Internal Mounting Option
Internal slots for PCB installation

Downloads

Models & Drawings
3D Model EX-65 STEP
2D Drawing DWG EX-65 DWG
2D Drawing PDF EX-65 PDF
Other Files EX-65 Printing Template
Material Specs
EX Series Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Surface Mounting Kit EX-70
Frequently Bought Together

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
6.65 x 6.99 x 2.41 in
Taiwan, Province of China
2-16 weeks
Black
Aluminum
Outdoor use
N/A
N/A
  • Optional surface mounting kit (sold separately)
  • Internal slots for PCB installation
  • Degree of inherent EMI/RFI protection
  • Machine screws for on/off convenience
6.65 x 5.77 x 1.64 in
Taiwan, Province of China
2-16 weeks
Black
Aluminum
Outdoor use
N/A
N/A
  • Optional surface mounting kit (sold separately)
  • Internal slots for PCB installation
  • Degree of inherent EMI/RFI protection
  • Machine screws for on/off convenience
8.23 x 5.77 x 1.64 in
Taiwan, Province of China
2-16 weeks
Black
Aluminum
Outdoor use
N/A
N/A
  • Optional surface mounting kit (sold separately)
  • Internal slots for PCB installation
  • Degree of inherent EMI/RFI protection
  • Machine screws for on/off convenience
5.08 x 5.77 x 1.64 in
Taiwan, Province of China
2-16 weeks
Black
Aluminum
Outdoor use
N/A
N/A
  • Optional surface mounting kit (sold separately)
  • Internal slots for PCB installation
  • Degree of inherent EMI/RFI protection
  • Machine screws for on/off convenience
