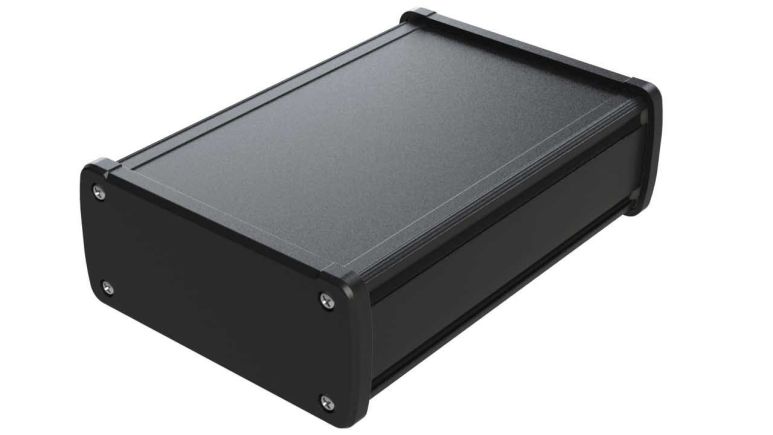

EX-58 EX Series Extruded Aluminum Enclosures

6.65 x 4.53 x 2.03 in. / 168.91 x 115.06 x 51.56 mm. / 1.04 lbs

  • Black anodized aluminum body
  • Removable cast aluminum end caps
  • Designed to allow a .063" thick PCB to slide in
  • Grooved exterior for faster heat removal
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Flange kit available for surface mounting: EX-70 Flange

3D Models

2D Drawings

Material Specifications

   COLOR
Part Number Material Black
EX-58-01 Aluminum  Yes
Options & Pricing
Category
Color
Series
IP Rating
Material

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$33.80
10 to 49$28.15
50 to 99$25.35
100 to 249$22.50
250 to 499$22.05
500 to 999$22.05
1000+$22.05
