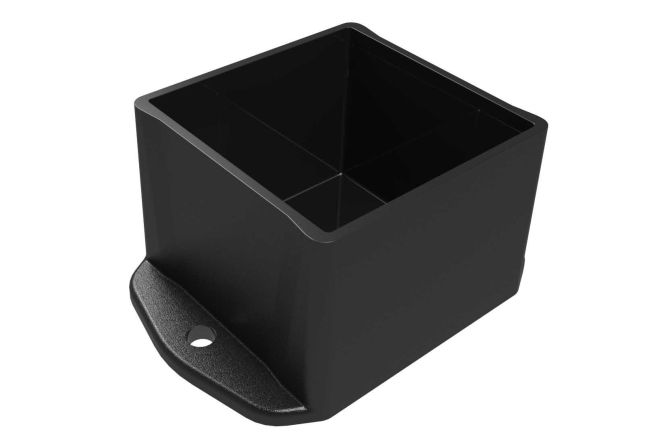

BX-2215 Potting Box Enclosure
Extra-deep enclosure for housing electronics
Product Overview
The BX-2215 is an extra-deep housing molded from black flame-retardant ABS plastic. Designed for potting electronic components, the enclosure comes standard with molded-on flanges to simplify surface mounting, while the optional cover BX-22C (sold separately) provides an added level of protection for your components.
Specifications for
BX-2215BXX
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.0 x 2.0 x 1.5 in 52 x 52 x 38 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 1.7 x 1.7 x 1.4 in 45 x 45 x 36 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.10 in |
| Weight | 0.07 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Inventory for
BX-2215BXX
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 2745 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 6 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | BX-2215 STEP |
| 2D Drawing DWG | BX-2215 DWG |
| 2D Drawing PDF | BX-2215 PDF |
| Other Files | BX-2215BXX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Series |
