Part
BX-22C
External Dimensions 2.05 x 2.05 x 0.10 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $0.92
10 - 49 $0.80
50 - 99 $0.68
100 - 249 $0.61
250 - 499 $0.58
More
Part
BX-22C
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

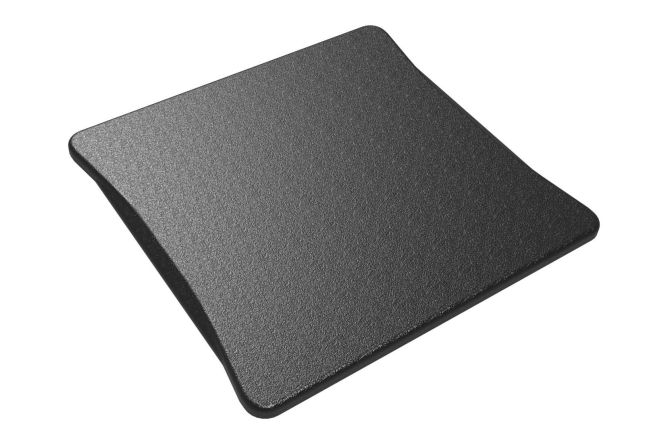

The BX-22C is the optional ABS plastic cover for the BX-2208, BX-2210 and BX-2215 enclosures, it bonds to the internal ledge of the potting box.
Specifications for
BX-22C
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
2.05 x 2.05 x 0.10 in
52 x 52 x 3 mm
Weight 0.02 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Product Material ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model BX-22C STEP
2D Drawing DWG BX-22C DWG
2D Drawing PDF BX-22C PDF
Other Files BX-22C Printing Template

Enclosure Guide

Compatible Enclosures
BX Series Potting Boxes BX-2208 , BX-2210 , BX-2215
