Enclosure Covers | BX Series Potting Boxes

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings

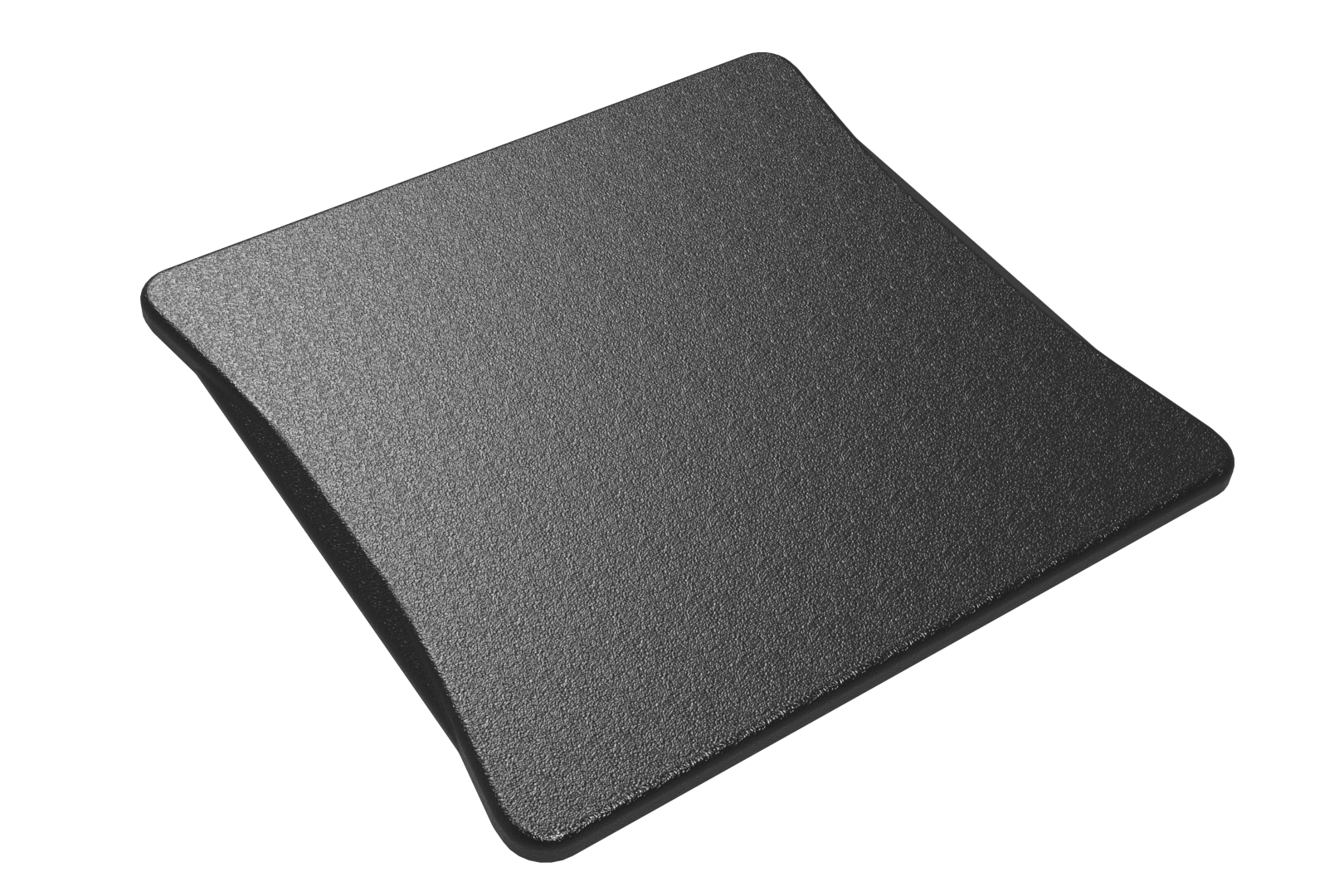

BX-22CBX-22CDetails2.05 x 2.05 x 0.00 in.
52.07 x 52.07 x 0.00 mm
0.02 lbs.
3d fileDWGPDF
BX-23CBX-23CDetails2.05 x 3.05 x 0.00 in.
52.07 x 77.47 x 0.00 mm
0.02 lbs.
3d fileDWGPDF
BX-33C BX-33CDetails3.00 x 3.05 x 0.00 in.
76.20 x 77.47 x 0.00 mm
0.03 lbs.
3d fileDWGPDF
