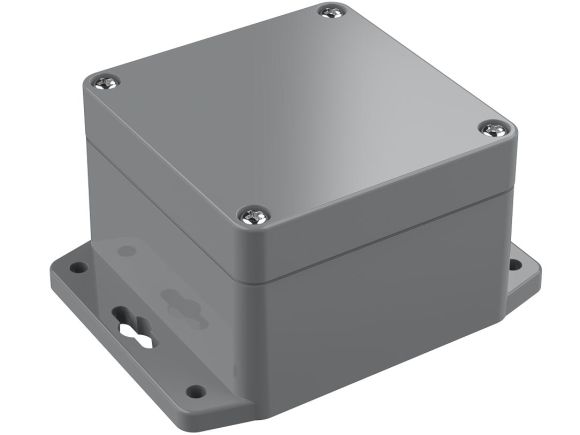

WA-31F WA Series ABS Indoor NEMA Enclosures

3.23 x 3.15 x 2.17 in. / 82.04 x 80.01 x 55.12 mm. / 0.27 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • UL Listed to UL508-4x specifications (File E194432)
  • Silicone rubber gasket for protection from adverse indoor conditions
  • Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
  • Comes standard with plastic PCB mounting bosses
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Internal mounting panel WX-62 available

Material Specifications

    STANDARD COLORWATERPROOF
Part Number Material Flame Rating Dark Gray Gasket
WA-31F*16 Flame Retardant ABS UL94-HB Yes Yes
