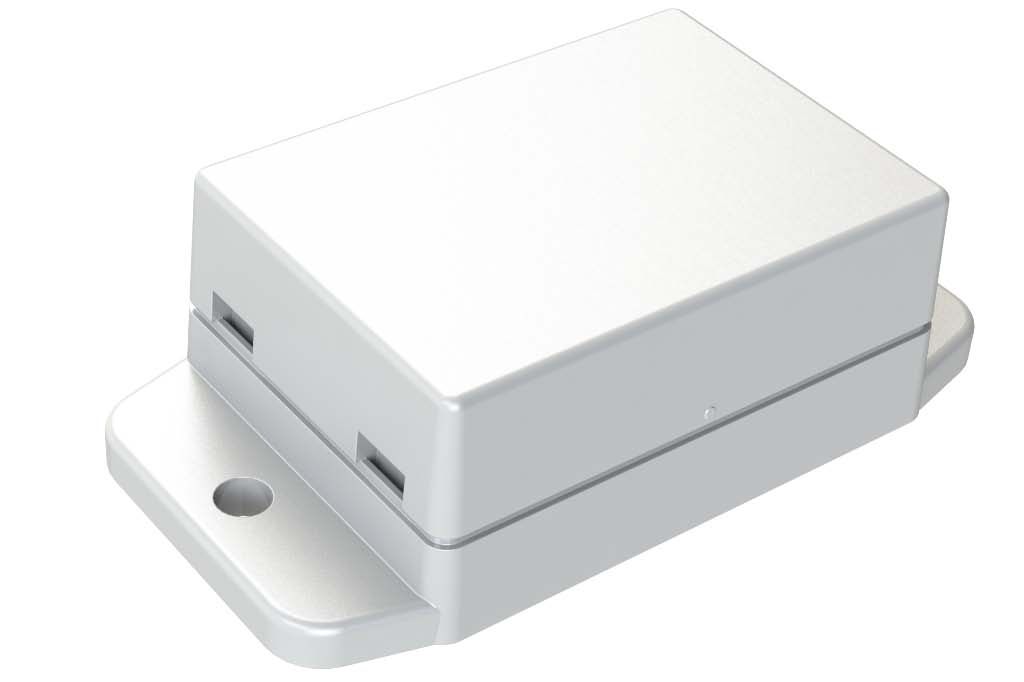

SN-20 White Snap Together Enclosure
Snap together white ABS enclosure with molded on mounting flanges
Product Overview
The SN-20-00 snap-fit enclosure is molded from white flame-retardant ABS plastic with standard surface-mounting flanges. Securing your components is simple with the 2 PCB mounting bosses located in the base, while the small cable outlets can be easily cut open to function as pass-throughs. The snap-together design makes assembly quick and efficient, making the enclosure ideal for potting applications and other IoT devices.
Specifications for
SN-20-00
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 1.9 x 1.3 x 0.8 in 50 x 35 x 22 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 1.7 x 1.1 x 0.7 in 43 x 29 x 18 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.079 in |
| Weight | 0.04 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
Inventory for
SN-20-00
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 760 |
| Ready To Ship in 2 Weeks | 4115 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 16 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | SN-20-00 STEP |
| 2D Drawing DWG | SN-20-00 DWG |
| 2D Drawing PDF | SN-20-00 PDF |
| Other Files | SN-20-00 Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
