SK-24 SK Series Enclosures with Knockouts

10.00 x 7.09 x 3.54 in. / 254.00 x 180.09 x 89.92 mm. / 1.55 lbs

  • Made in Germany
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP66 rating (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (24 x M20, 4 x M25/32, 4 x M32/40)

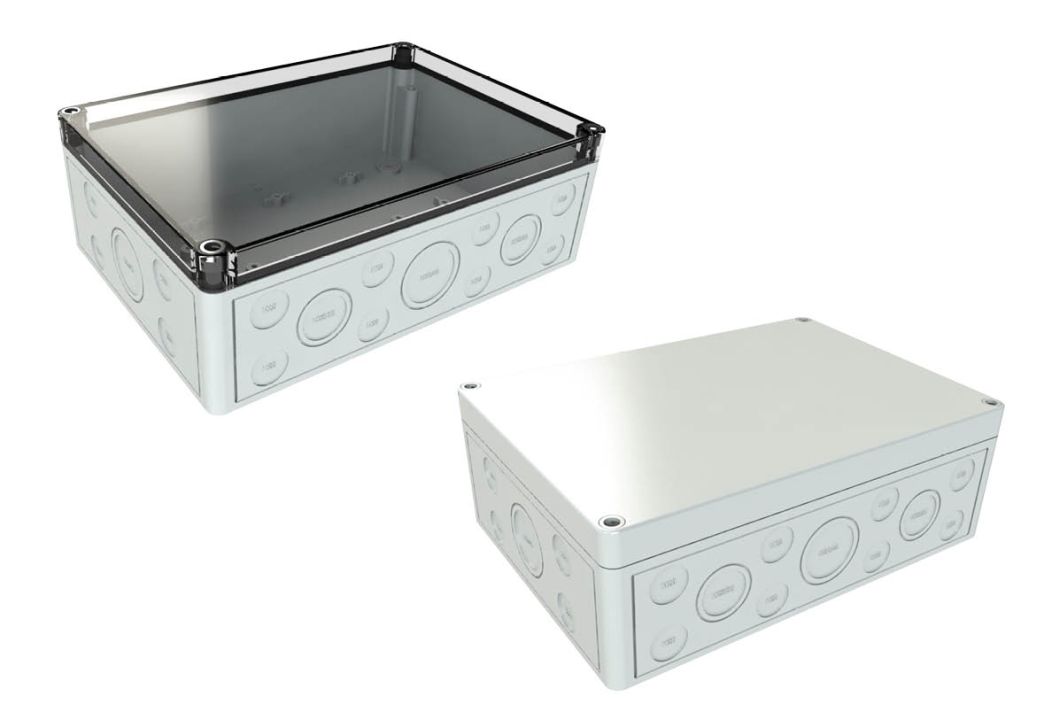

  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
  • Optional accessories include flange kit and internal panel
  • Knockout instructions can be found here

3D Models

2D Drawings

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C  Gray Smoke Clear Gasket
SK-24-02 Fiberglass Reinforced Polycarbonate V-2 5VA Yes   Yes
SK-24-03 Fiberglass Reinforced Polycarbonate / Polycarbonate V-2 5VA   Yes Yes
Options & Pricing
Application
Cover Color
Category
Color
IP Rating
Material
NEMA Rating
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$49.37
10 to 49$47.02
50 to 99 $43.53
100 to 249$41.36
250 to 499$39.29
500 to 999$37.32
1000+$35.46
