PM2314 Wall Plug Enclosure

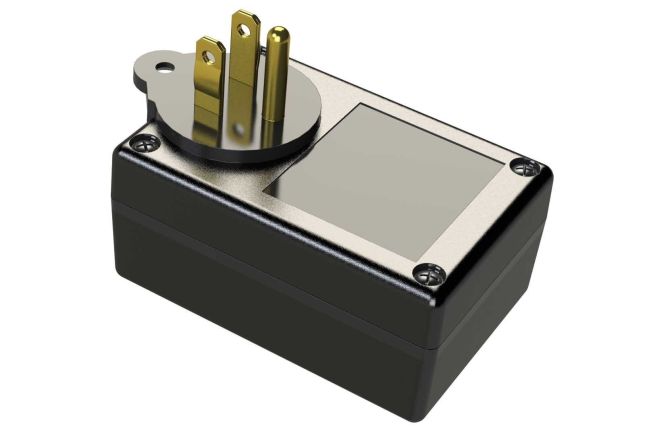

AC wall plug ABS enclosure

Part
PM2314
External Dimensions 3.00 x 2.00 x 1.40 in
In stock
Color
Unit Price $5.20
Part
PM2314
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The PM2314 enclosure is molded from black flame-retardant ABS plastic with 4 PCB mounting bosses located in the base. Offering a choice of a molded on anchoring screw tab (3-prong option only) or no anchoring screw tab you can choose either 2-prong or 3-prong (grounded) 15 AMP 120 VAC plug configuration.
Specifications for
PM2314
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Screw Type
Screw Use
Returnable
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
PM2314
Updated: 07/20/24 01:01 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Returnable

Downloads

Models & Drawings
3D Model PM2314 STEP
2D Drawing DWG PM2314 DWG
2D Drawing PDF PM2314 PDF
Other Files PM2314 Printing Template
Other Files PCB Template for Reference
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Spare Parts
Extra Cover Screws SCREWS-HL1-BR

Part Numbers

Number of Prongs Anchoring Screw Tab
Part # 2 3 No Yes
PM2314T02XNT
PM2314T03XWT
PM2314T03XNT
