NX-2416P ABS Plastic Enclosure

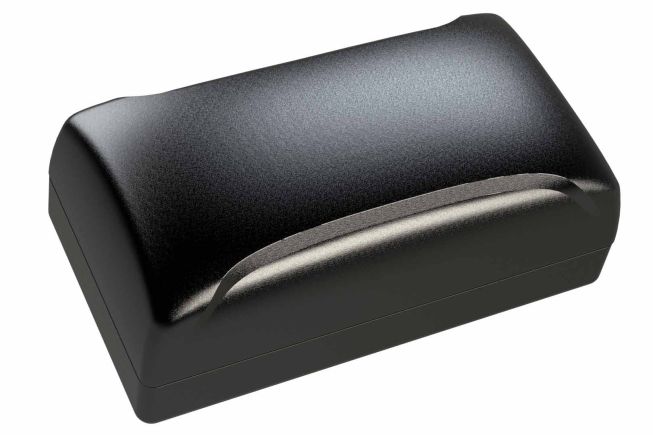

Small electronic enclosure molded from black ABS plastic
Product Overview
The NX-2416P is an electronic enclosure molded from black ABS plastic featuring a curved cover for a modern feel, with the cover screwing directly into the base for a flush surface. Secure your PCB with the 4 PCB mounting bosses located in the base.
Specifications for
NX-2416PMB
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.1 x 2.2 x 1.5 in 104 x 57 x 40 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 3.8 x 2.0 x 1.4 in 99 x 51 x 37 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.07 in |
| Weight | 0.11 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | None |
| Internal Mounting Option | PCB mounting bosses in base |
Inventory for
NX-2416PMB
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 1169 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | NX-2416P STEP |
| 2D Drawing DWG | NX-2416P DWG |
| 2D Drawing PDF | NX-2416P PDF |
| Other Files | NX-2416P Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Products |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
