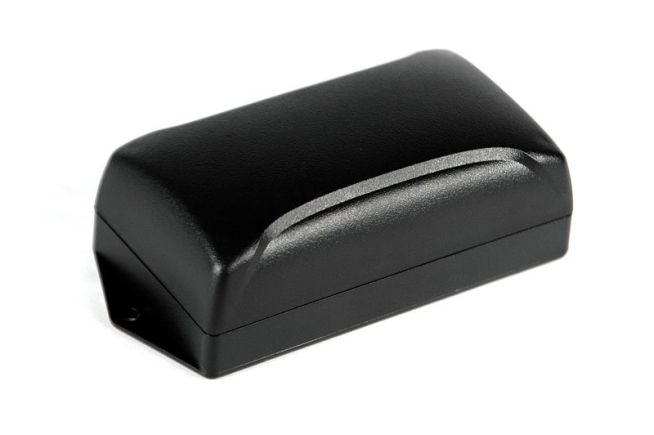

NX-2416F ABS Plastic Enclosure

Small electronic enclosure with curved cover and molded on flanges

Part
NX-2416FMB
External Dimensions 4.11 x 2.23 x 1.59 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $5.27
10 - 49 $4.63
50 - 99 $4.06
100 - 249 $3.54
250 - 499 $3.31
More
Part
NX-2416FMB
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The NX-2416F is an electronic enclosure molded from black ABS plastic featuring a curved cover for a modern feel, with the cover screwing directly into the base for a flush surface and flanges to simplify surface mounting. Secure your PCB with the 4 PCB mounting bosses located in the base.
Specifications for
NX-2416FMB
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.11 x 2.23 x 1.59 in
104 x 57 x 40 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
3.94 x 2.06 x 1.45 in
100 x 52 x 37 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.11 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, cover, and 4 screws
Screw Torque 4 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model NX-2416F STEP
2D Drawing DWG NX-2416F DWG
2D Drawing PDF NX-2416F PDF
Other Files NX-2416F Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Spare Parts
Extra Cover Screws SCREWS-HL1-BR
