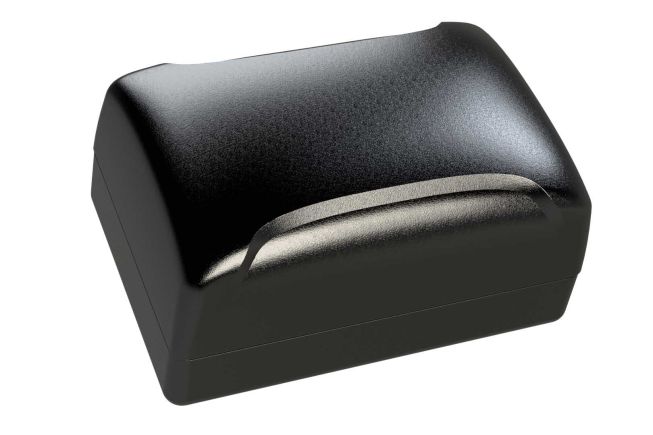

NX-2316P ABS Plastic Enclosure

Electronics enclosure molded from ABS - ideal for potting applications

Part
NX-2316PMB
External Dimensions 3.09 x 2.09 x 1.59 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $4.26
10 - 49 $3.53
50 - 99 $3.08
100 - 249 $2.57
250 - 499 $2.41
More
Part
NX-2316PMB
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The NX-2316P is an electronic enclosure molded from black ABS plastic featuring a curved cover for a modern feel, with the cover screwing directly into the base for a flush surface. Secure your PCB with the 4 PCB mounting bosses located in the base.
Specifications for
NX-2316PMB
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
3.09 x 2.09 x 1.59 in
78 x 53 x 40 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
2.90 x 1.91 x 1.45 in
74 x 49 x 37 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.04 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, cover, and 4 screws
Screw Torque 4 in lbs
External Mounting Style None
Internal Mounting Option
PCB mounting bosses in base
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model NX-2316P STEP
2D Drawing DWG NX-2316P DWG
2D Drawing PDF NX-2316P PDF
Other Files NX-2316P Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Spare Parts
Extra Cover Screws SCREWS-HL1-BR

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
3.09 x 2.09 x 1.59 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Modern curved cover style
  • Thread forming cover screws
3.00 x 2.00 x 1.49 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Thread forming cover screws
3.00 x 2.00 x 1.50 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • Optional PCB mounting bosses
  • Cover screws hidden when mounted
  • Thread forming cover screws
