HD-22K HD Series Mounting Panel
Product Overview

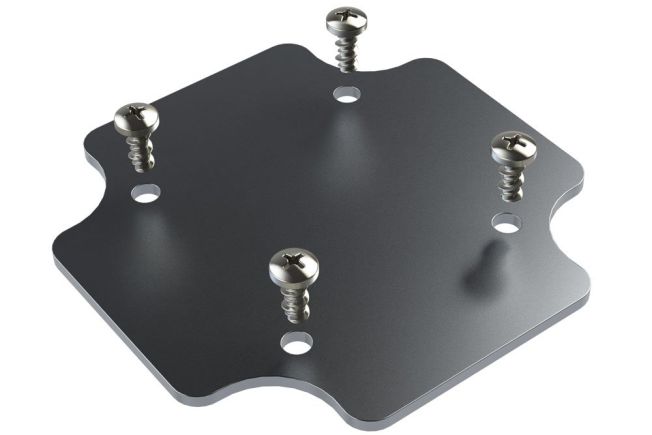

The HD-22K internal aluminum mounting panel, featuring a natural finish, comes with mounting screws and is designed to assemble to the mounting bosses in the base of the HD-22F enclosure.
Specifications for
HD-22K-01
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.1 x 2.1 x 0.0 in 55 x 55 x 2 mm |
| Weight | 0.03 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Panel | Aluminum |
| Assembly Screws | Steel |
General
| Series | |
| Color | Metallic |
| Country of Origin |  United States |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 to 3 weeks |
Assembly Details
| Components Include Hover me Most components require assembly upon delivery. | Panel and 4 screws |
Inventory for
HD-22K-01
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 82 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 to 3 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | HD-22K STEP |
| 2D Drawing DWG | HD-22K DWG |
| 2D Drawing PDF | HD-22K PDF |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Aluminum Panels |
Enclosure Guide
Compatible Enclosures
| HD Series NEMA Enclosures | HD-22F |
