EX-53 Extruded Aluminum Enclosure

Name: EX-53
SKU: EX-53-01
Price: 26.11 USD

Desktop electronic enclosure with 2 end caps

Skip to the end of the images gallery

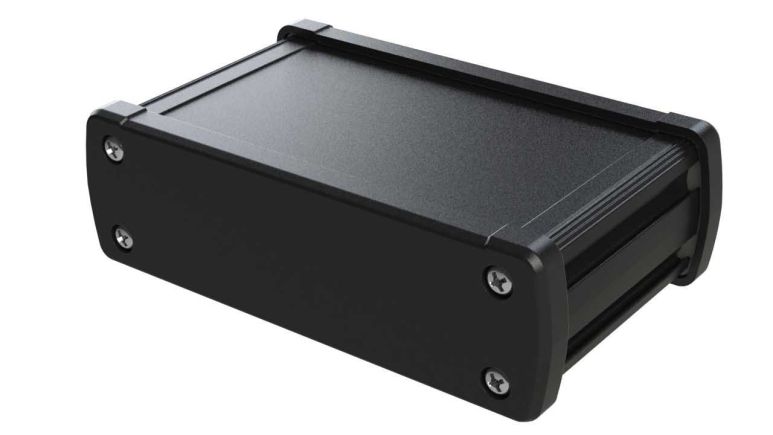

EX-53-01 Black extruded aluminum enclosure for electronics - 2.72 x 4.48 x 1.39 inches

Skip to the beginning of the images gallery

EX Series

Part

EX-53-01

External Dimensions 2.7 x 4.4 x 1.3 in

In stock

Color Black

Qty	Price / Unit
1 - 9	$26.11
10 - 49	$22.72
50 - 99	$20.45
100 - 249	$19.03
250 - 499	$18.07
More
500+	$17.71

Part

EX-53-01

Qty:

Increase Down Increase Up

Customize It

Product Overview

The EX-53 enclosure offers a wide black anodized extruded aluminum body and 2 ADC-12 diecast powder-coated end caps that are removable to allow for easy access to internal components. The EX series is designed to allow a 0.063" thick PCB to slide into the enclosure, maximizing internal space while the grooved exterior supports quick heat dispersion. Meeting IP66 requirements per manufactures testing, the EX series provides a continuous gasket, helping prevent the intrusion of dust and moisture when assembled. Get the most out of your EX-53 by utilizing the flange kit (sold separately), easily slide the brackets into place where you need them, and secure with the 2 screws provided - giving you added flexibility to the way you mount.

Specifications for

EX-53-01

Dimensions

Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.	2.7 x 4.4 x 1.3 in 69 x 114 x 35 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.	2.4 x 3.7 x 1.0 in 61 x 94 x 25 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.	0.12 in
Weight	0.50 lbs
2d Drawing PDF	Download 2D Drawing PDF

Material Details

Download Material Specs	Download Material Specs
End Cap	Powder-coated cast aluminum
Gasket	Continuous neoprene
Body	Anodized aluminum
Assembly Screws	Stainless steel

Application

Indoor/Outdoor Use

Outdoor use

General

Series	EX Series
Color	Black
Country of Origin	Taiwan

Assembly Details

Assembly Includes Hover me Most components require assembly upon delivery.	Body, 2 end caps, 2 gaskets, 4 bumpers, 8 washers, and 8 captive screws
Screw Torque	6 in lbs
External Mounting Style	Optional surface mounting kit (sold separately)
Internal Mounting Option	Internal slots for PCB installation

Inventory for

EX-53-01

In stock

Number of Units in Stock

Additional Stock

Ready To Ship in 2 Weeks	285
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.	2 to 16 weeks

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
