DR-58 DIN Rail Kit
Product Overview

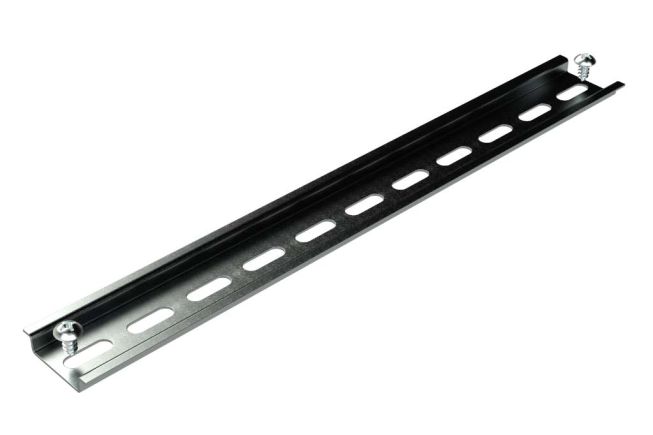

The DR-58 DIN rail kit is designed for mounting internal components securely along the width of the ZH-141206, ZQ-141206, along the length of the ZH-121006, ZQ-121006 or along the length or width of the ZH-121206 and ZQ-121206 enclosures. It comes complete with: (1) 35 mm x 7.5 mm x 275 mm din rail and (2) screws for mounting inside base of enclosure.
Specifications for
DR-58
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
10 x 1.3 x 0.3 in
275 x 35 x 8 mm
|
| DIN Rail Length (mm) | 275 mm |
| Weight | 0.19 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| DIN Rail | Steel |
| Assembly Screws | Steel |
Inventory for
DR-58
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 27 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 days |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | DR-58 STEP |
| 2D Drawing PDF | DR-58 PDF |
Guides
| Din Rail Cross Reference Guide | Din Rail Reference Guide |
Enclosure Guide
Compatible Enclosures
| ZH Series (Installed Along Width) | ZH-141206 , ZH-141204 |
| ZH Series (Installed Along Length) | ZH-121006 |
| ZH Series (Installed Along Length or Width) | ZH-121206 |
| ZQ Series (Installed Along Width) | ZQ-141206 , ZQ-141204 |
| ZQ Series (Installed Along Length) | ZQ-121006 |
| ZQ Series (Installed Along Length or Width) | ZQ-121206 |
