Part
DR-14
External Dimensions 8.86 x 1.38 x 0.30 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $8.52
10 - 49 $7.67
50 - 99 $7.14
100 - 249 $6.65
250 - 499 $6.18
More
Part
DR-14
Increase Down Increase Up
Product Overview

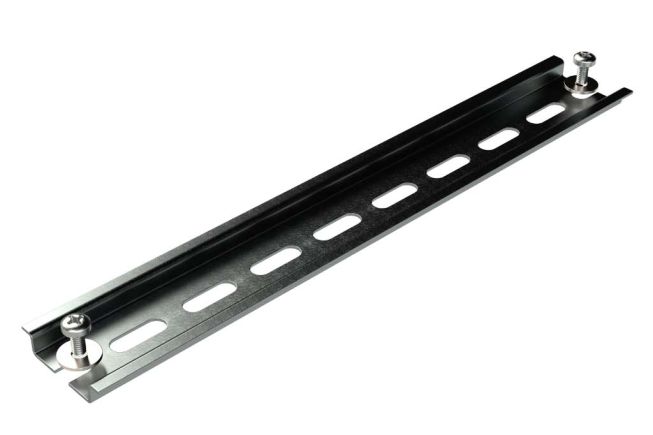

The DR-14 DIN rail kit is designed for mounting internal components securely along the length of the WH-08 enclosure. It comes complete with: (1) 35 mm x 7.5 mm x 225 mm din rail, (2) washers and (2) screws for mounting inside base of enclosure.
Specifications for
DR-14
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
8.86 x 1.38 x 0.30 in
225 x 35 x 8 mm
DIN Rail Length (mm) 225 mm
Weight 0.16 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
DIN Rail Steel
Assembly Screws Steel
General
Series
Color Metallic
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 2 days
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Din rail, 2 washers, and 2 screws

Downloads

Models & Drawings
3D Model DR-14 STEP
2D Drawing DWG DR-xx DWG
2D Drawing PDF DR-14 PDF
Guides
Din Rail Cross Reference Guide Din Rail Reference Guide

Enclosure Guide

Compatible Enclosures
WH Series (Installed Along Length) WH-08
