BX-3315 Potting Box Enclosure

Extra-deep square enclosure for potting applications

Part
BX-3315
External Dimensions 3.05 x 3.05 x 1.56 in
In stock
Color
Unit Price $2.73
Part
BX-3315
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

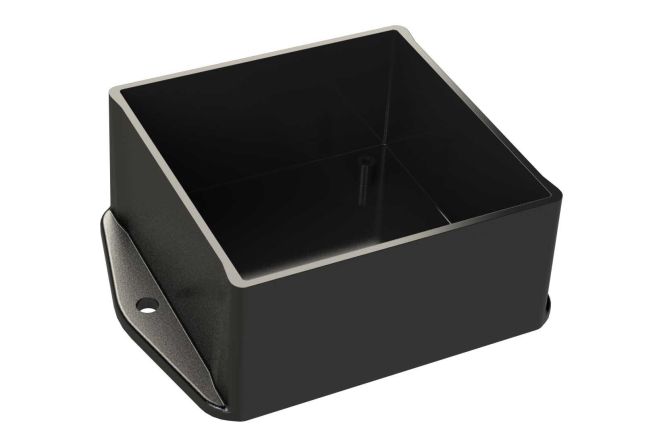

The BX-3315 is a square enclosure constructed from black flame-retardant ABS that comes standard with molded-on flanges to simplify surface mounting. Designed for indoor electronic applications, the enclosure offers the option of 4 PCB mounting bosses in the base, and a cover (BX-33C) that can be purchased separately to give your components an added level of protection.
Specifications for
BX-3315
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
