AL-78P Diecast Aluminum Enclosure
Large aluminum enclosure for indoor use
Product Overview

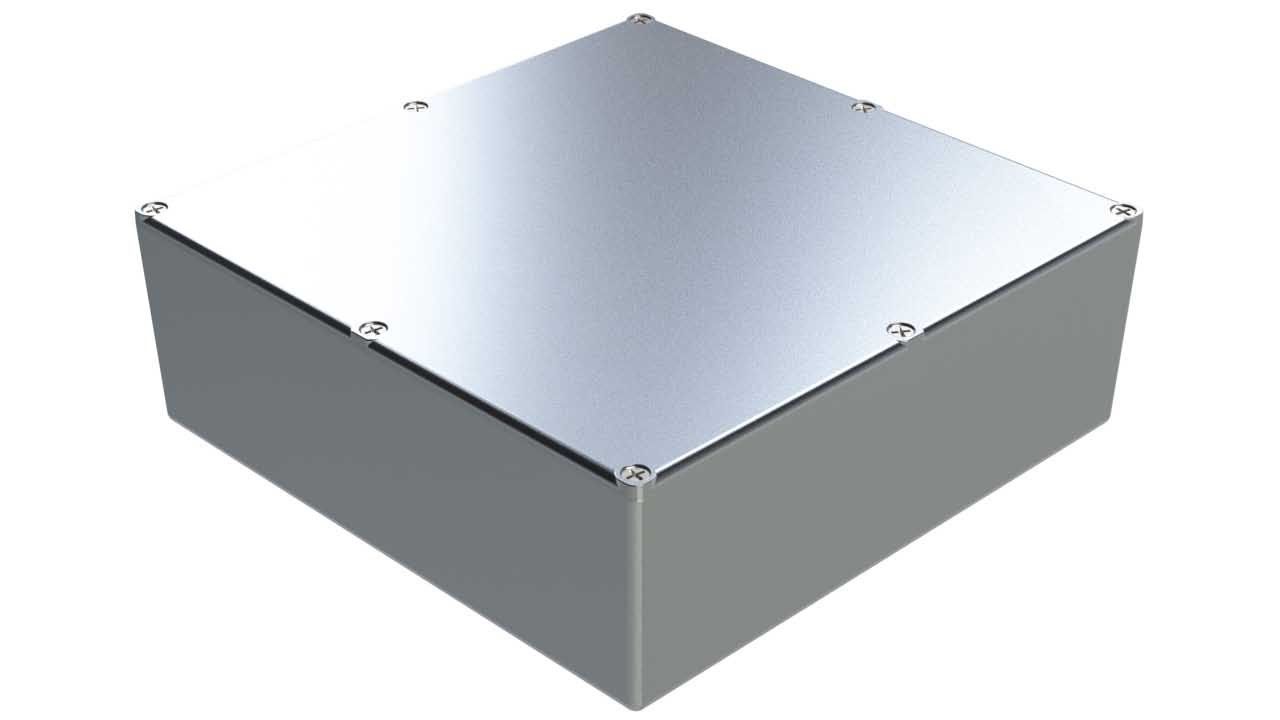

The AL-78P enclosure is made from ADC-12 diecast aluminum alloy, featuring a natural aluminum finish and built-in EMI/RFI attenuation for reliable performance in applications requiring protection from external interference. Its large, shallow design is complemented by eight thread-forming cover screws, allowing for easy assembly of the base and cover. Ideal for indoor industrial or other electrical applications.
Specifications for
AL-78P-01
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
7.5 x 7.5 x 2.6 in
191 x 191 x 67 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
7.0 x 7.0 x 2.4 in
180 x 180 x 62 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 1.36 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Aluminum |
| Cover | Aluminum |
| Assembly Screws | Steel |
Application
| Indoor/Outdoor Use | Indoor use |
| Waterproof | No |
Inventory for
AL-78P-01
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | Contact Us |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 16 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | AL-78P STEP |
| 2D Drawing DWG | AL-78P DWG |
| 2D Drawing PDF | AL-78P PDF |
| Other Files | AL-78P Printing Template |
Material Specs
| Aluminum Material Specs | Aluminum Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA AL/AN/EX Series |
Accessory Guide
Optional Accessories
| Adhesive PCB Mounting Standoffs | MB-01-20 |
