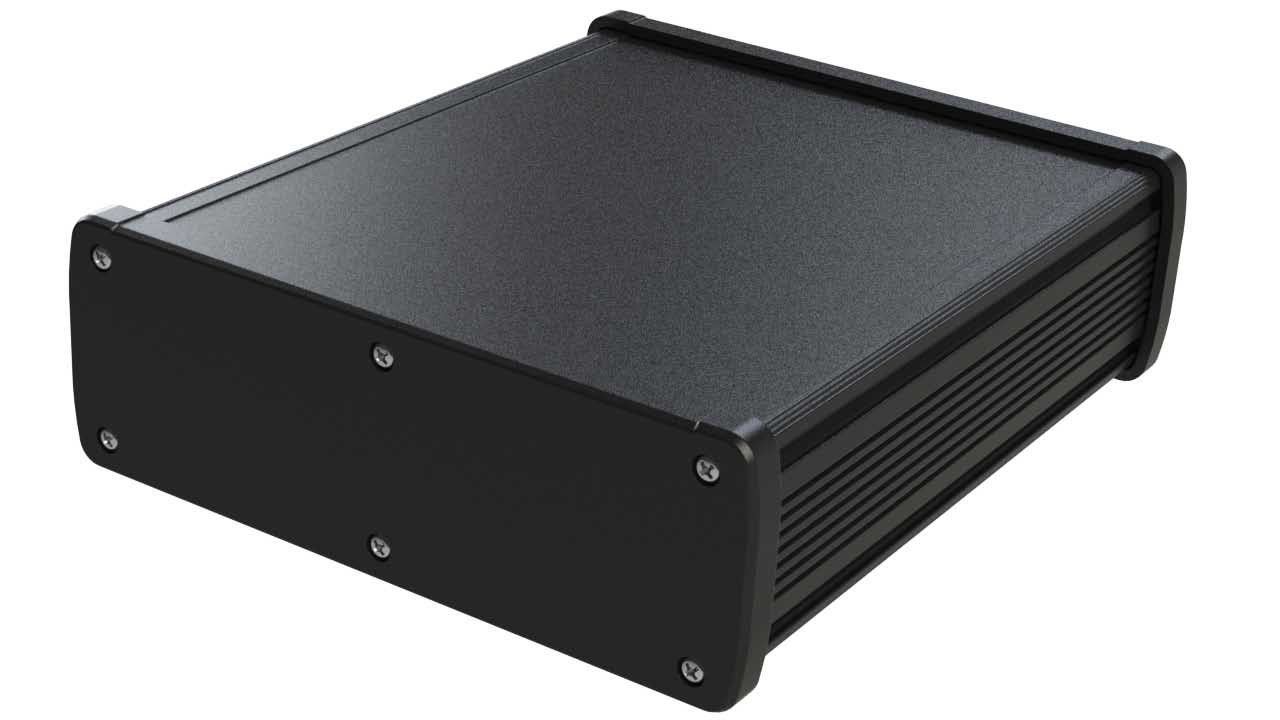

EX-66 Extruded Aluminum Enclosure

Aluminum electronic enclosure for desktop applications

External Dimensions 8.23 x 6.99 x 2.41 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $69.54
10 - 49 $60.50
50 - 99 $54.45
100 - 249 $50.64
250 - 499 $48.11
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The EX-66 enclosure is a durable enclosure that offers a black anodized extruded aluminum body and 2 ADC-12 diecast powder-coated end caps that are removable to allow for easy access to internal components. The EX series is designed to allow a 0.063" thick PCB to slide into the enclosure, maximizing internal space while the grooved exterior supports quick heat dispersion. Meeting IP66 requirements per manufactures testing, the EX series provides a continuous gasket, helping prevent the intrusion of dust and moisture when assembled. Get the most out of your EX-66 by utilizing the flange kit (sold separately), easily slide the brackets into place where you need them, and secure with the 2 screws provided - giving you added flexibility to the way you mount.
Specifications for
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. 8.23 x 6.99 x 2.41 in
External Dimensions (mm) 209 x 178 x 61 mm
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. 7.99 x 6.30 x 1.89 in
Internal Dimensions (mm) 203 x 160 x 48 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.12 in
Weight 2.14 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
End Cap Powder-coated cast aluminum
Gasket Continuous neoprene
Body Anodized aluminum
Assembly Screws Stainless steel
Application Outdoor use
Series EX Series
Color Black
Country of Origin Taiwan
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Body, 2 end caps, 2 gaskets, 4 bumpers, 12 washers, and 12 screws
Screw Torque 6 in lbs
External Mounting Style Optional surface mounting kit (sold separately)
Internal Mounting Option Internal slots for PCB installation


Models & Drawings
3D Model EX-66 STEP
2D Drawing DWG EX-66 DWG
2D Drawing PDF EX-66 PDF
Other Files EX-66 Printing Template
Material Specs
EX Series Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Surface Mounting Kit EX-70
