ZX-0606K Internal Mounting Panels

Part
ZX-0606K
External Dimensions 5.75 x 5.75 x 0.06 in
In stock
Color
Unit Price $11.47
Part
ZX-0606K
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

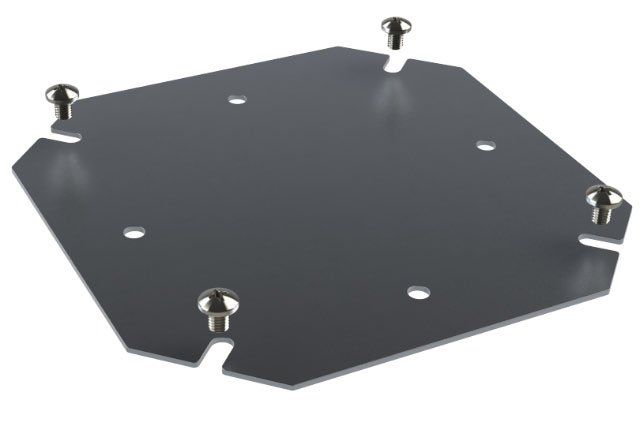

The ZX-0606K aluminum internal mounting panel is designed for ZH-060604 and ZQ-060604 enclosures, and has 4 different options available. The standard panel kit (Part # ZX-0606K-01) mounts to 4 standard mounting bosses in the bottom of the enclosure base. The hinged panel kit (Part # ZX-0606K-02) allows for assembly at any depth within the base while also providing the advantage of being able to swing open for easy access to internal components. The top of base or cover panel kit (Part # ZX-0606K-03) serves dual purposes for mounting in the cover or at the top of the base. The suspension panel kit (Part # ZX-0606K-04) allows the panel to be suspended at any depth within the base - unlike the hinged panel configuration, the suspension panel is designed to be stationary rather than swing open.
