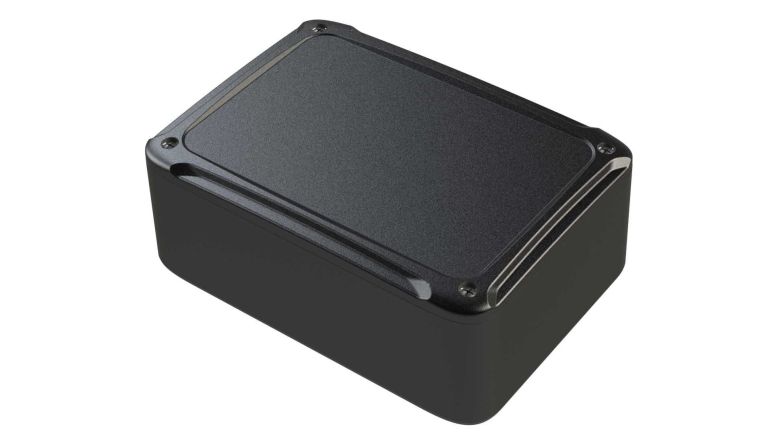

XR-35P XR Series ABS Plastic Enclosure for Electronics

5.25 x 3.75 x 1.97 in. / 133.35 x 95.25 x 50.04 mm. / 0.35 lbs

  • Optional recessed/smooth area on cover for graphic overlays or membrane keypads
  • Optional recessed/textured area for consistant finish
  • Cover screws directly into base
  • 4 PCB mounting bosses in base
  • Assembly includes base, cover, and 4 enclosure screws

Material Specifications

   STANDARD COLORSCOVER STYLES
Part Number Material Flame Rating Black Recessed / Textured Recessed / Smooth
XR-35PMBT Flame Retardant ABS UL94-5VA Yes Yes
XR-35PMBR Flame Retardant ABS UL94-5VA Yes   Yes
Options & Pricing
Category
Application
Color
Series
Material
Cover Style
Flanges
PCB Mounting Bosses

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$6.60
10 to 49$5.80
50 to 99$5.11
100 to 249$4.64
250 to 499$4.32
500 to 999$4.02
1000+$3.82
