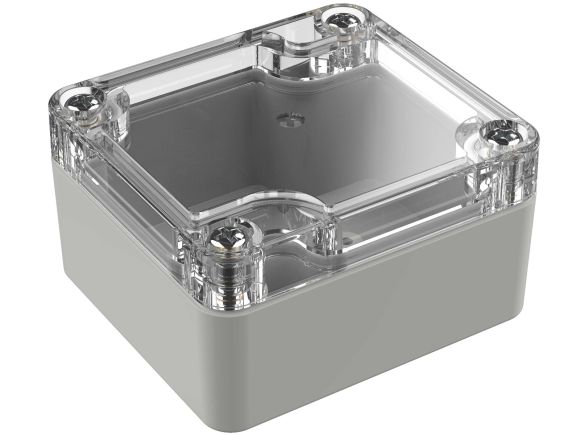

WC-20 WC Series Outdoor Enclosures with Clear Covers

2.28 x 2.52 x 1.38 in. / 57.91 x 64.01 x 35.05 mm. / 0.16 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • UL Listed to UL508-4x specifications (File E194432)
  • Silicone rubber gasket
  • Plastic PCB mounting bosses are standard
  • Durable, impact-resistant, UV stabilized Polycarbonate with clear cover
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Optional internal mounting panel WX-10 available


3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-20*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
