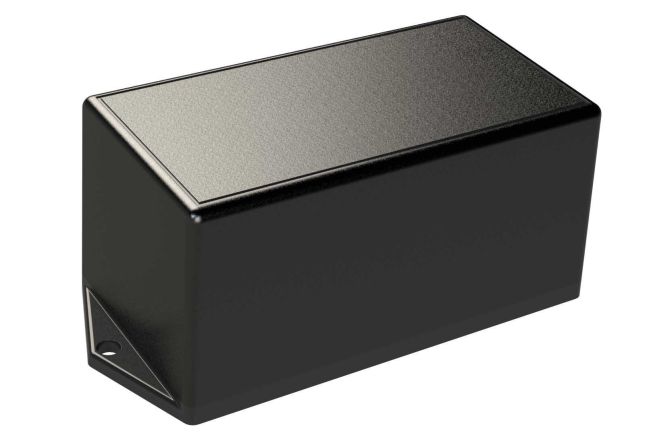

TF-2420TX Potting Box Enclosure

Potting case with molded-on flanges for surface mounting

Part
TF-2420TX
External Dimensions 4.00 x 2.13 x 2.00 in
In stock
Color Black
Qty Price / Unit
1 - 9 $2.75
10 - 49 $2.58
50 - 99 $2.30
100 - 249 $2.08
250 - 499 $1.94
More
Part
TF-2420TX
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

The TF-2420TX is a potting case made from black ABS plastic with flanges located at the opening of the housing. Designed for indoor use, the enclosure protects components in an electronic assembly. For additional protection, a glue-on cover can be purchased separately.

Specifications for
TF-2420TX
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.00 x 2.13 x 2.00 in
102 x 54 x 51 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
3.86 x 2.00 x 1.87 in
98 x 51 x 47 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.10 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Product Material ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
External Mounting Style Molded-on flange
Internal Mounting Option
No PCB mounting bosses
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model TF-2420TX STEP
2D Drawing DWG TF-2420TX DWG
2D Drawing PDF TF-2420TX PDF
Other Files TF-2420TX Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
Glue-on Cover C-0204-N
Adhesive PCB Mounting Standoffs MB-01-20

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
4.00 x 2.13 x 2.00 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
4.00 x 2.13 x 2.00 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
4.00 x 2.13 x 2.00 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • Optional PCB mounting bosses
  • Cover screws hidden when mounted
  • Thread forming cover screws
4.00 x 2.13 x 2.59 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Thread forming cover screws
