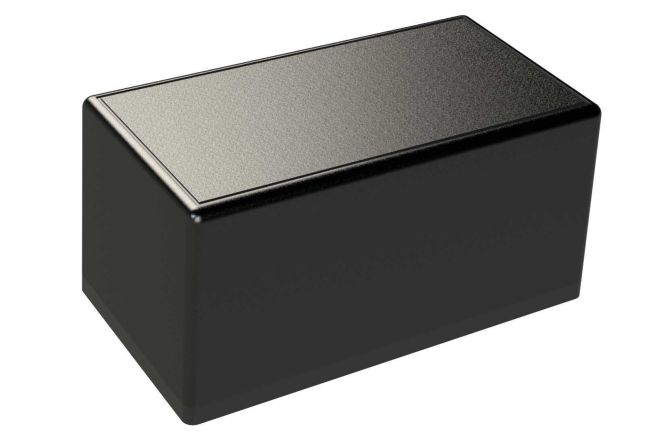

P-2420TX Potting Box Enclosure

Black ABS potting case designed for indoor electronic applications

Part
P-2420TX
External Dimensions 4.00 x 2.13 x 2.00 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $2.75
10 - 49 $2.58
50 - 99 $2.30
100 - 249 $2.08
250 - 499 $1.94
More
Part
P-2420TX
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The P-2420TX is a potting case molded from black flame-retardant ABS plastic. Designed for indoor use, the enclosure is best suited for desktop or other IoT electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
P-2420TX
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.00 x 2.13 x 2.00 in
102 x 54 x 51 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
3.88 x 2.00 x 1.94 in
99 x 51 x 49 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.10 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Product Material ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
External Mounting Style None
Internal Mounting Option
No PCB mounting bosses
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model P-2420TX STEP
2D Drawing DWG P-2420TX DWG
2D Drawing PDF P-2420TX PDF
Other Files P-2420TX Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
Glue-on Cover C-0204-N
Adhesive PCB Mounting Standoffs MB-01-20
