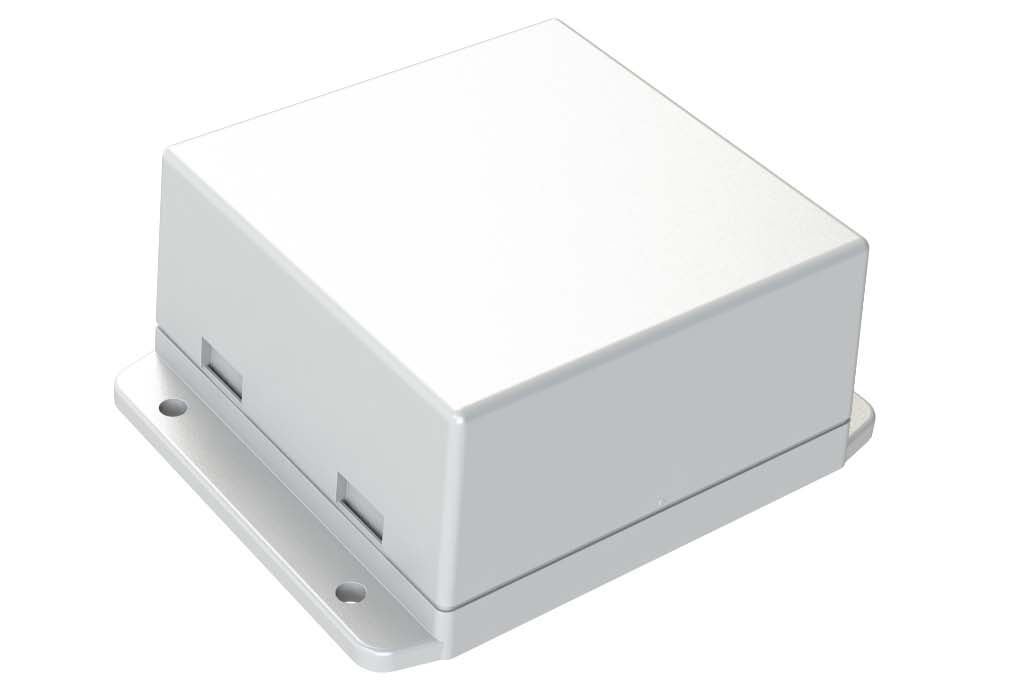

SN-31 White Snap Together Enclosure

Square electronics housing molded from white ABS plastic

Part
SN-31-00
External Dimensions 3.15 x 3.15 x 1.71 in
In stock
Color White
QtyPrice / Unit
1 - 9 $6.90
10 - 49 $6.01
50 - 99 $5.28
100 - 249 $5.12
250 - 499 $4.97
More
Part
SN-31-00
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The SN-31-00 square enclosure is molded from white flame-retardant ABS plastic with standard surface-mounting flanges. Securing your components is simple with the 4 PCB mounting bosses located in the base, while the small cable outlets can be easily cut open to function as pass-throughs. The snap-together design makes assembly quick and efficient, making the enclosure ideal for potting applications and other IoT devices.
Specifications for
SN-31-00
Dimensions
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. 3.15 x 3.15 x 1.71 in
External Dimensions (mm) 80 x 80 x 43 mm
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. 2.97 x 2.95 x 1.52 in
Internal Dimensions (mm) 75 x 75 x 39 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.098 in
Weight 0.13 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series SN Series
Color White
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base and cover
External Mounting Style Molded-on flange
Internal Mounting Option PCB mounting bosses in base
Ratings
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model SN-31-00 STEP
2D Drawing DWG SN-31-00 DWG
2D Drawing PDF SN-31-00 PDF
Other Files SN-31-00 Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
