Product Overview

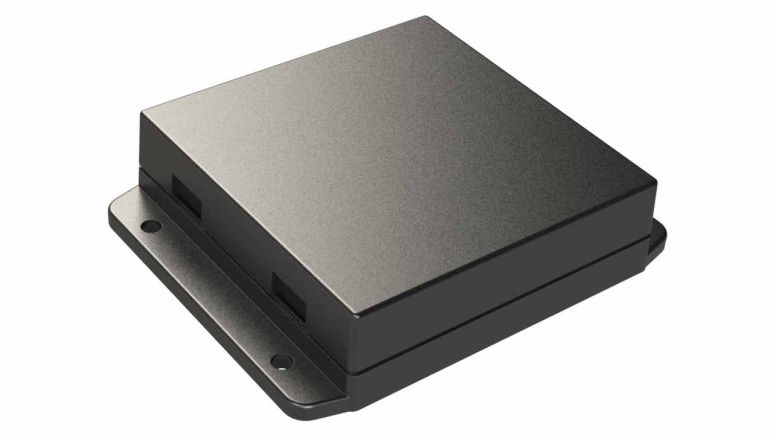

The SN-30 space-saving enclosure is molded from black flame-retardant ABS plastic with standard surface-mounting flanges. Securing your components is simple with the 4 PCB mounting bosses located in the base, while the small cable outlets can be easily cut open to function as pass-throughs. The snap-together design makes assembly quick and efficient, making the enclosure ideal for potting applications and other IoT devices.
Specifications for
SN-30-01
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.15 x 3.15 x 0.93 in |
| External Dimensions (mm) | 80 x 80 x 24 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.97 x 2.95 x 0.73 in |
| Internal Dimensions (mm) | 75 x 75 x 19 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.098 in |
| Weight | 0.11 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
Downloads
Models & Drawings
| 3D Model | SN-30 STEP |
| 2D Drawing DWG | SN-30 DWG |
| 2D Drawing PDF | SN-30 PDF |
| Other Files | SN-30 Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
