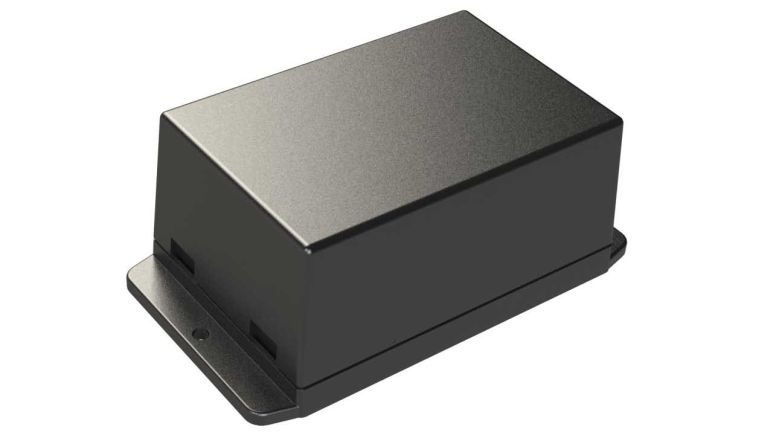

SN-29 Snap Together Enclosure

Electronic housing with snap-fit design made from black ABS

Part
SN-29-01
External Dimensions 4.13 x 2.76 x 1.99 in
In stock
Color Black
Qty Price / Unit
1 - 9 $7.52
10 - 49 $6.54
50 - 99 $5.75
100 - 249 $5.59
250 - 499 $5.42
More
Part
SN-29-01
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The SN-29 electronic housing is molded from black flame-retardant ABS plastic with standard surface-mounting flanges. Securing your components is simple with the 4 PCB mounting bosses located in the base, while the small cable outlets can be easily cut open to function as pass-throughs. The snap-together design makes assembly quick and efficient, making the enclosure ideal for potting applications and other IoT devices.
Specifications for
SN-29-01
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.13 x 2.76 x 1.99 in
105 x 70 x 51 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
3.93 x 2.57 x 1.82 in
100 x 65 x 46 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.087 in
Weight 0.15 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base and cover
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base
Ratings
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model SN-29 STEP
2D Drawing DWG SN-29 DWG
2D Drawing PDF SN-29 PDF
Other Files SN-29 Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
4.13 x 2.76 x 1.99 in
Taiwan, Province of China
2-18 weeks
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Shallow base and deep cover
  • Snap together design
4.13 x 2.76 x 1.99 in
Taiwan, Province of China
2-18 weeks
White
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Shallow base and deep cover
  • Snap together design
4.25 x 3.00 x 1.38 in
United States
1 week
Black or Bone
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Two cover styles to choose from
  • Thread forming cover screws
4.38 x 3.13 x 2.00 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
