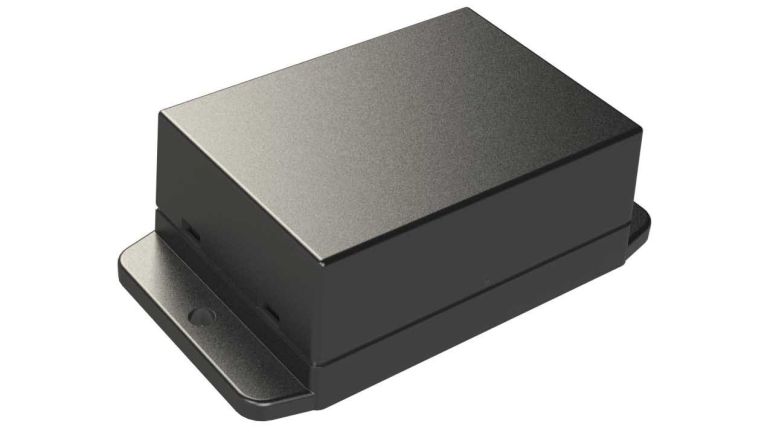

External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.76 x 1.97 x 1.16 in |
External Dimensions (mm) | 70 x 50 x 29 mm |
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.55 x 1.78 x 1.00 in |
Internal Dimensions (mm) | 65 x 45 x 25 mm |
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.079 in |
Weight | 0.07 lbs |
2d Drawing PDF | Download 2D Drawing PDF |
Download Material Specs | Download Material Specs |
Base | ABS |
Cover | ABS |
Application | Indoor use |
UV Resistant | No |
Waterproof | No |
3D Model | SN-24 STEP |
2D Drawing DWG | SN-24 DWG |
2D Drawing PDF | SN-24 PDF |
Other Files | SN-24 Printing Template |
Material Specs | ABS Plastic Specs |
PCB Mounting Boss Screws | SCREWS-MBR-100 |
Adhesive PCB Mounting Standoffs | MB-01-20 |
