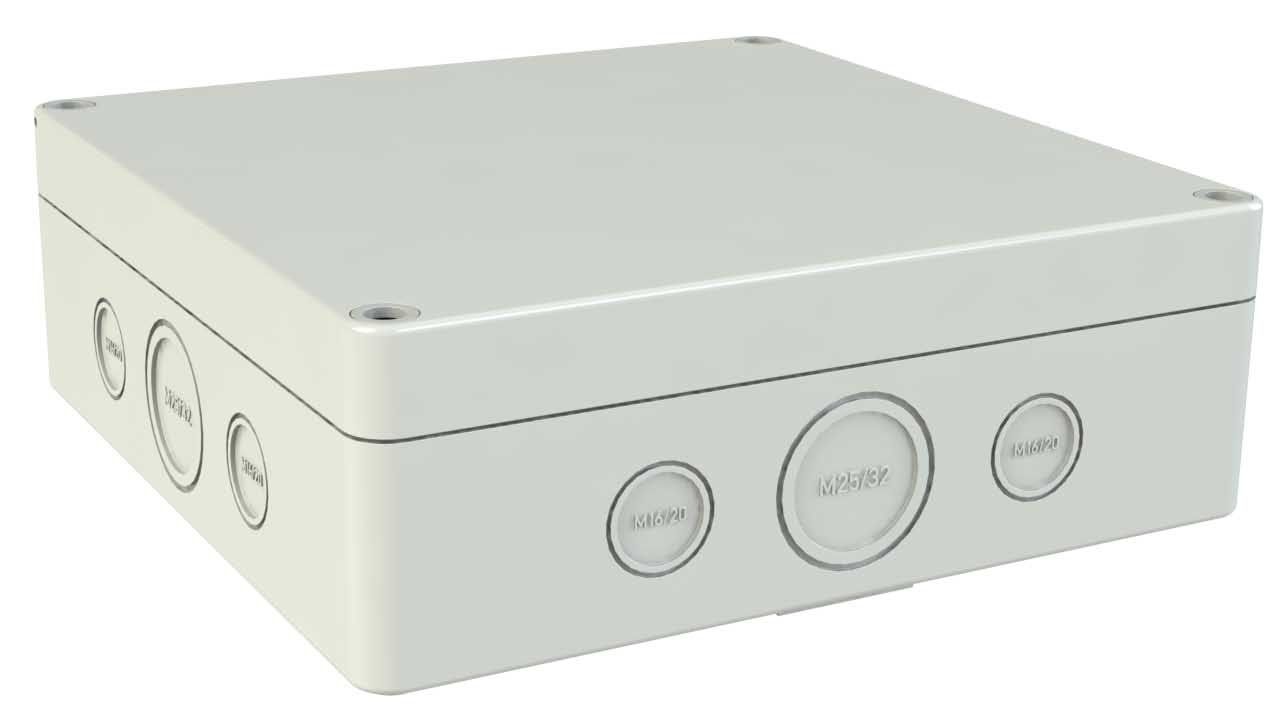

SK-28 Enclosure with Knockouts

7.17 x 7.09 x 2.42 in / 182 x 180 x 61 mm
View Details
In stock
Color
Unit Price $41.28
Part
SK-28
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • Made in Germany by Spelsberg
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP65 & IP66 specifications based on NEMA/UL Type rating conversion
  • IP65 rated
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (8 x M16/20 , 4 x M25/32)
  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Centrally located bosses for DIN rail mounting
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
Rating Specification
Flame rating UL94 V-2, UL746C 5VA
NEMA Rating 4X, 12K
IP Equivalent IP65, IP66
Impact Rating IK08 (DIN EN 50102)
Color
Part # Gray Gray with Clear Cover
SK-28-02
SK-28-03

Optional Accessories Include:

  • Internal mounting panel and screws - SK-19K
  • Din Rail kit installed along length or width - DR-37
  • Flange kit for surface mounting - SK-99
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting
  • Adhesive PCB mounting standoffs - MB-01-20

Models, Drawings, Material Specs and Other Files

3D Model SK-28 STEP
2D Drawing SK-28 DWG
2D Drawing SK-28 PDF
Material Spec SK Material Specs
