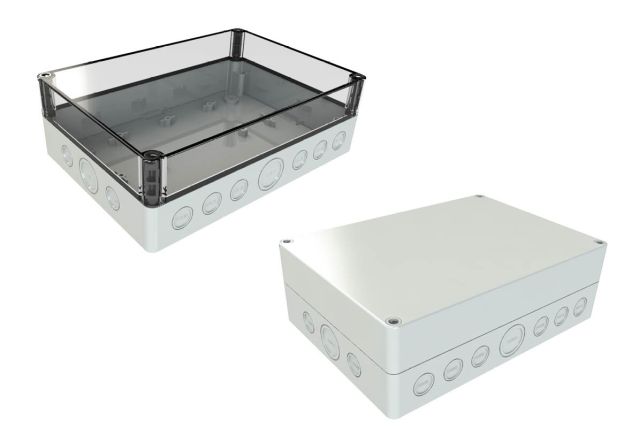

SK-23 SK Series NEMA 4X Waterproof Enclosure with Knockouts

10.00 x 7.09 x 3.31 in. / 254.00 x 180.09 x 84.07 mm. / 1.45 lbs

  • Made in Germany
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP66 rating (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (16 x M16/20, 4 x M25/32)
  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
  • Optional accessories include flange kit and internal panel

3D Models

2D Drawings

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C  Gray Smoke Clear Gasket
SK-23-02 Fiberglass Reinforced Polycarbonate V-2 5VA Yes   Yes
SK-23-03 Fiberglass Reinforced Polycarbonate / Polycarbonate V-2 5VA   Yes Yes
Options & Pricing
Application
Cover Color
Category
Color
IP Rating
Material
NEMA Rating
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$47.45
10 to 49$45.19
50 to 99$41.85
100 to 249$39.75
250 to 499 $37.77
500 to 999$35.88
1000+$34.08
