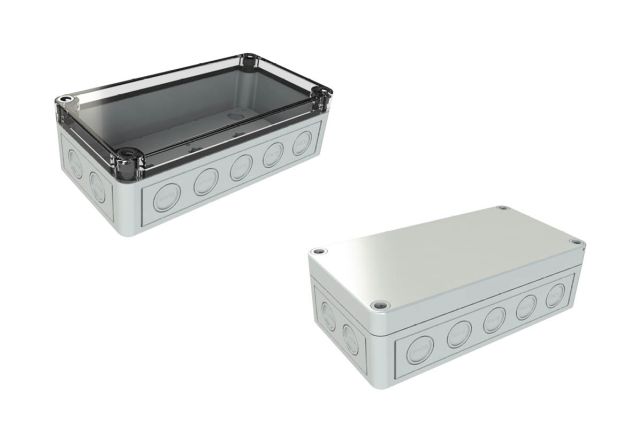

SK-17 Enclosure with Knockouts

7.09 x 3.70 x 2.24 in / 180 x 94 x 57 mm
View Details
In stock
Unit Price $27.08
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • Made in Germany by Spelsberg
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP65 & IP66 specifications based on NEMA/UL Type rating conversion
  • IP65 rated
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (14 x M16/20)
  • Centrally located bosses for DIN rail mounting
  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
Rating Specification
Flame rating UL94 V-2, UL746C 5VA
NEMA Rating 4X, 12K
IP Equivalent IP65, IP66
Impact Rating IK08 (DIN EN 50102)
Part # Gray Gray with Clear Cover

Optional Accessories Include:

  • Internal mounting panel and screws - SK-17K
  • DIN Rail installed along length - DR-37
  • DIN Rail installed along width - DR-03
  • Flange kit for surface mounting - SK-99
  • Internal spacer kit - SK-97S
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting
  • Adhesive PCB mounting standoffs - MB-01-20

Models, Drawings, Material Specs and Other Files

3D Model SK-17 STEP
2D Drawing SK-17 DWG
2D Drawing SK-17 PDF
Material Spec SK Material Specs
