SK-29 SK Series Enclosures with Knockouts

7.09 x 4.33 x 3.45 in. / 180.09 x 109.98 x 87.63 mm. / 0.90 lbs

  • Made in Germany
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP66 rating (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (16 x M20, 2 x M20/25, 2 x M32/40)

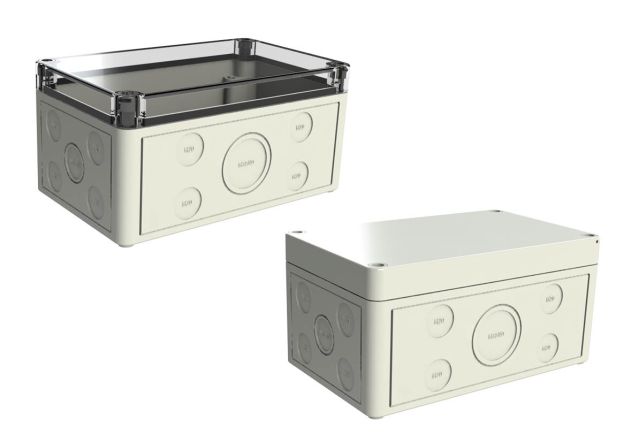

  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Centrally located bosses for DIN rail mounting
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
  • Optional accessories include flange kit
  • Knockout instructions can be found here

3D Models

2D Drawings

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C  Gray Smoke Clear Gasket
SK-29-02 Fiberglass Reinforced Polycarbonate V-2 5VA Yes   Yes
SK-29-03 Fiberglass Reinforced Polycarbonate / Polycarbonate V-2 5VA   Yes Yes
