SK-12 SK Series Enclosures with Knockouts

3.70 x 2.56 x 2.24 in. / 93.98 x 65.02 x 56.90 mm. / 0.27 lbs

  • Made in Germany by Spelsberg
  • UL Listed to UL 508, Type 4X & 12K specifications (File E208470)
  • Meets IP66 rating (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Metric knockouts in base (6 x M16/20)

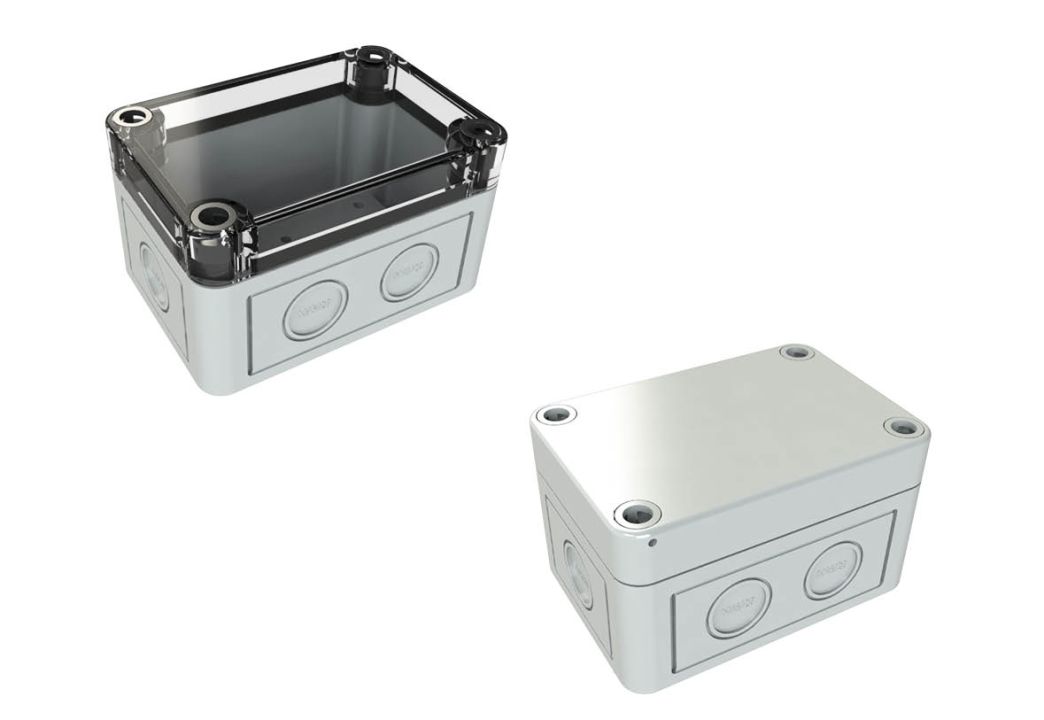

  • Gray or tinted clear cover option
  • Polyurethane gasket
  • Plastic screw design (Polyamide 6, fiberglass reinforced)
  • Optional accessories include flange kit and internal panel
  • Knockout instructions can be found here

3D Models

2D Drawings

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C  Gray Smoke Clear Gasket
SK-12-02 Fiberglass Reinforced Polycarbonate V-2 5VA Yes   Yes
SK-12-03 Fiberglass Reinforced Polycarbonate / Polycarbonate V-2 5VA   Yes Yes
Options & Pricing
Application
Cover Color
Category
Color
IP Rating
Material
NEMA Rating
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$11.05
10 to 49$10.53
50 to 99$9.75
100 to 249$9.26
250 to 499$8.80
500 to 999$8.36
1000+$7.94
