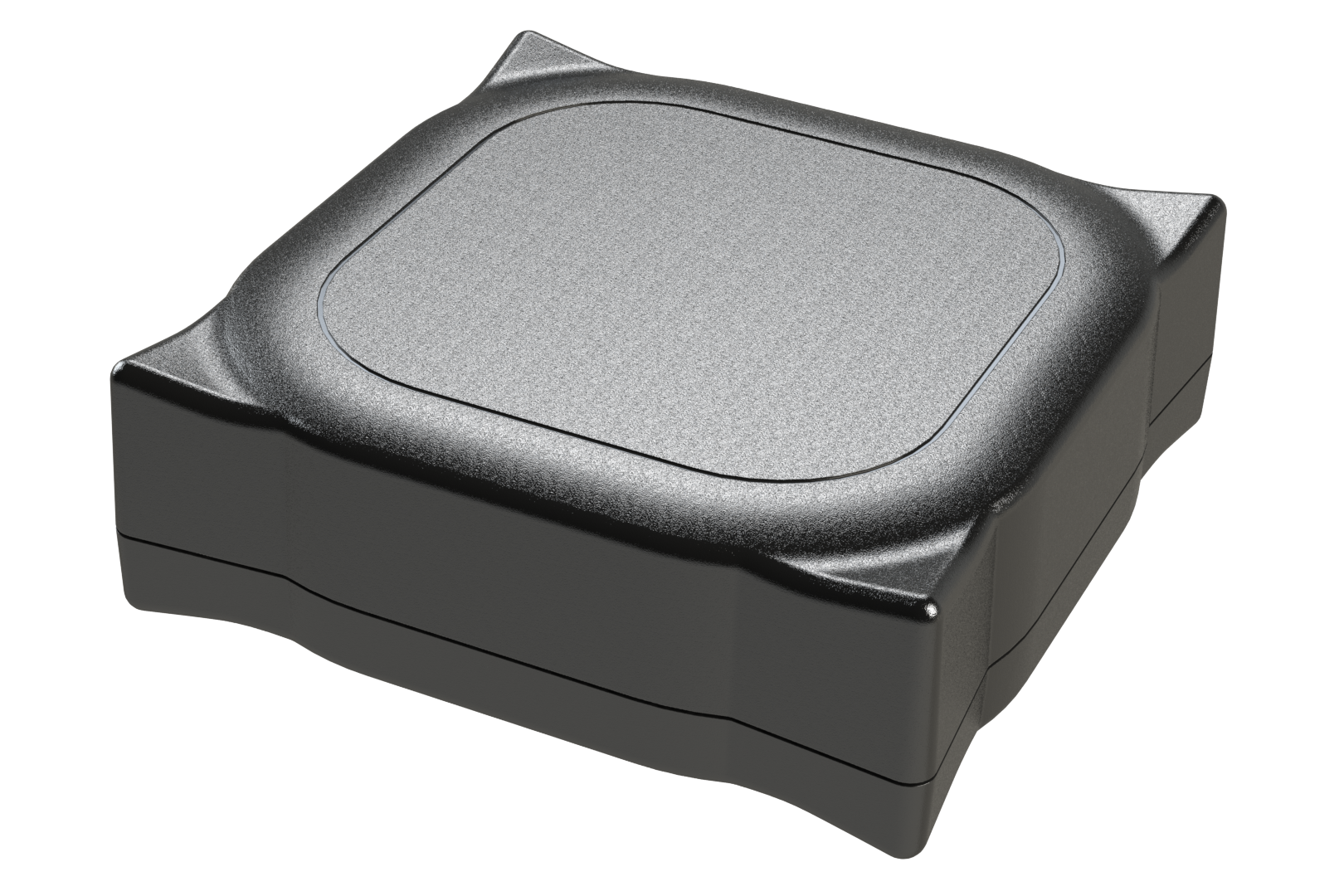

RW-45 RW Series Desktop/Instrument Electronic Enclosure

4.50 x 4.50 x 1.50 in. / 114.30 x 114.30 x 38.10 mm. / 0.31 lbs

  • Space saving design
  • Optional recessed/smooth area on cover for graphic overlays or membrane keypads
  • Optional flush/textured cover for consistent surface
  • 4 PCB mounting bosses in base
  • Assembly includes base, cover, and 4 enclosure screws

Material Specifications

   STANDARD COLORCOVER STYLES
Part Number Material Flame Rating Black Flush / Textured Recessed / Smooth
RW-45MBT Flame Retardant ABS UL94-5VA Yes Yes
RW-45MBR Flame Retardant ABS UL94-5VA Yes   Yes
Options & Pricing
Application
Category
Color
Material
Series
Max PCB
Cover Style
Flanges
PCB Mounting Bosses

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$6.26
10 to 49$5.64
50 to 99$5.01
100 to 249$4.38
250 to 499$4.06
500 to 999$3.76
1000+$3.44
