P-1304TX Potting Box Enclosure

Shallow potting enclosure crafted from ABS flame-retardant plastic

Part
P-1304TX
External Dimensions 2.0 x 1.2 x 0.4 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $1.25
10 - 49 $1.04
50 - 99 $0.92
100 - 249 $0.78
250 - 499 $0.75
More
Part
P-1304TX
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

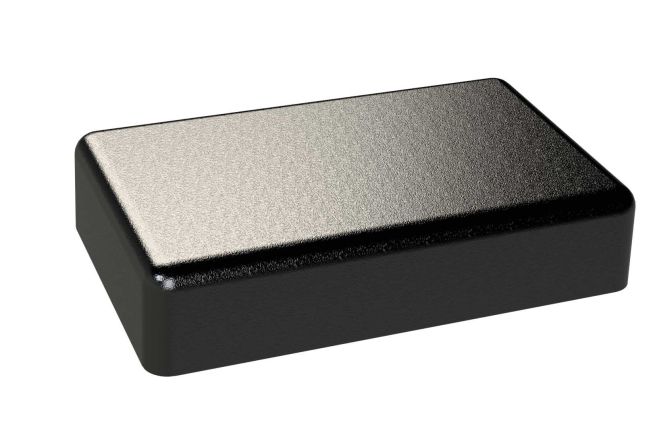

The P-1304TX is a shallow potting enclosure molded from black flame-retardant ABS plastic. Designed for indoor use, the enclosure is best suited for IoT, relays or other electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
P-1304TX
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
2.0 x 1.2 x 0.4 in
53 x 33 x 11 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
1.8 x 1.0 x 0.3 in
48 x 27 x 10 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.02 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Product Material ABS
Application
Indoor/Outdoor Use Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
External Mounting Style None
Internal Mounting Option
No PCB mounting bosses
Ratings
Flame Rating UL94 V-0
Inventory for
P-1304TX
In stock
Number of Units in Stock Hover me Stock available to ship within 1-2 business days 1963
Additional Stock
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Downloads

Models & Drawings
3D Model P-1304TX STEP
2D Drawing DWG P-1304TX DWG
2D Drawing PDF P-1304TX PDF
Other Files P-1304TX Printing Template
Material Specs
Material Specs ABS Plastic Specs
Certifications & Testing
USMCA Certificate of Origin USMCA Polycase Series

Accessory Guide

Optional Accessories
Glue-on Cover C-1302-N
Adhesive PCB Mounting Standoffs MB-01-20

Compare with Similar Items

Customer Rating
External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Country of Origin
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Color
Material
Application
NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
Mounting Style
Internal Mounting Option
Features
2.0 x 1.2 x 0.4 in
1.8 x 1.0 x 0.3 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
2.0 x 1.2 x 0.4 in
1.8 x 1.0 x 0.3 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
2.0 x 1.5 x 0.7 in
1.8 x 1.3 x 0.6 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
2.0 x 1.5 x 1.0 in
1.8 x 1.3 x 0.9 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
