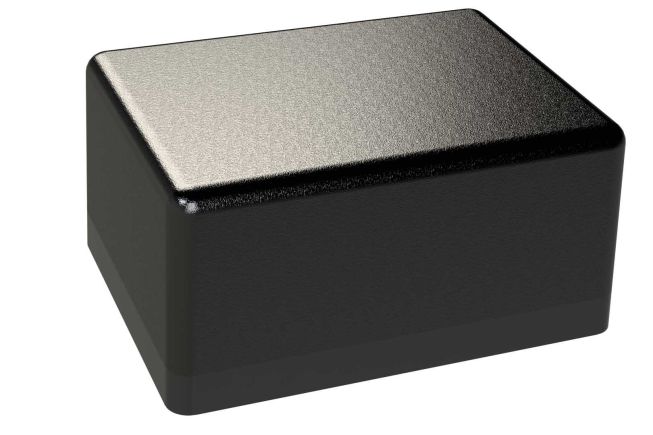

P-1521TX Potting Box Enclosure

Potting enclosure constructed from black flame-retardant plastic

Part
P-1521TX
External Dimensions 2.00 x 1.50 x 1.00 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $1.25
10 - 49 $1.04
50 - 99 $0.92
100 - 249 $0.78
250 - 499 $0.75
More
Part
P-1521TX
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The P-1521TX is a potting enclosure molded from black flame-retardant ABS plastic. Designed for indoor use, the enclosure is best suited for IoT, relays or other timed electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
P-1521TX
Dimensions
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. 2.00 x 1.50 x 1.00 in
External Dimensions (mm) 51 x 38 x 25 mm
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. 1.89 x 1.38 x 0.93 in
Internal Dimensions (mm) 48 x 35 x 24 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.07 in
Weight 0.03 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Product Material ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series TX Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Assembly Details
External Mounting Style None
Internal Mounting Option No PCB mounting bosses
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model P-1521TX STEP
2D Drawing DWG P-1521TX DWG
2D Drawing PDF P-1521TX PDF
Other Files P-1521TX Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
Glue-on Cover C-1502-N
Adhesive PCB Mounting Standoffs MB-01-20
