Part
ML-22K
External Dimensions 2.27 x 2.27 x 0.06 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $6.29
10 - 49 $5.23
50 - 99 $4.70
100 - 249 $4.23
250 - 499 $3.94
More
Part
ML-22K
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

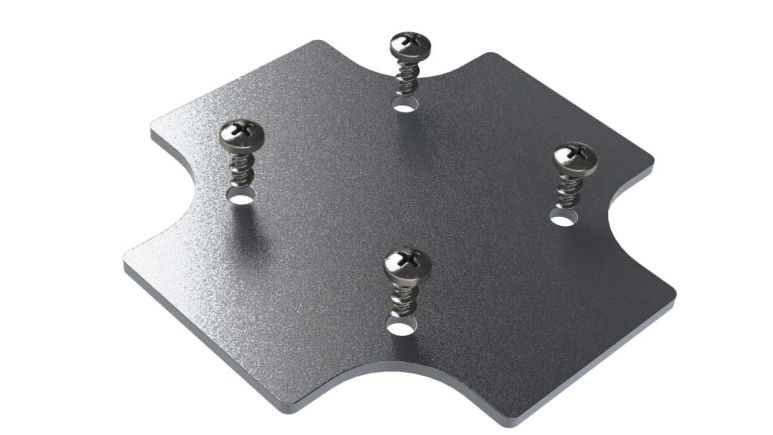

The ML-22K internal aluminum mounting panel, featuring a natural finish, comes with mounting screws and is designed to assemble to the mounting bosses in the base of the ML-22F enclosure.
Specifications for
ML-22K
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
2.27 x 2.27 x 0.06 in
58 x 58 x 2 mm
Weight 0.02 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
Assembly Screws Steel
General
Series
Color Metallic
Country of Origin United States United States
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel and 4 screws

Downloads

Models & Drawings
3D Model ML-22K STEP
2D Drawing DWG ML-22K DWG
2D Drawing PDF ML-22K PDF

Enclosure Guide

Compatible Enclosures
ML Series NEMA Enclosures ML-22F
indoor enclosure for electronics with graphics and machining
