HP-1006K Internal Mounting Panels

New
Part
HP-1006K
External Dimensions 9.60 x 5.60 x 0.06 in
In stock
Color
Unit Price $14.11
Part
HP-1006K
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

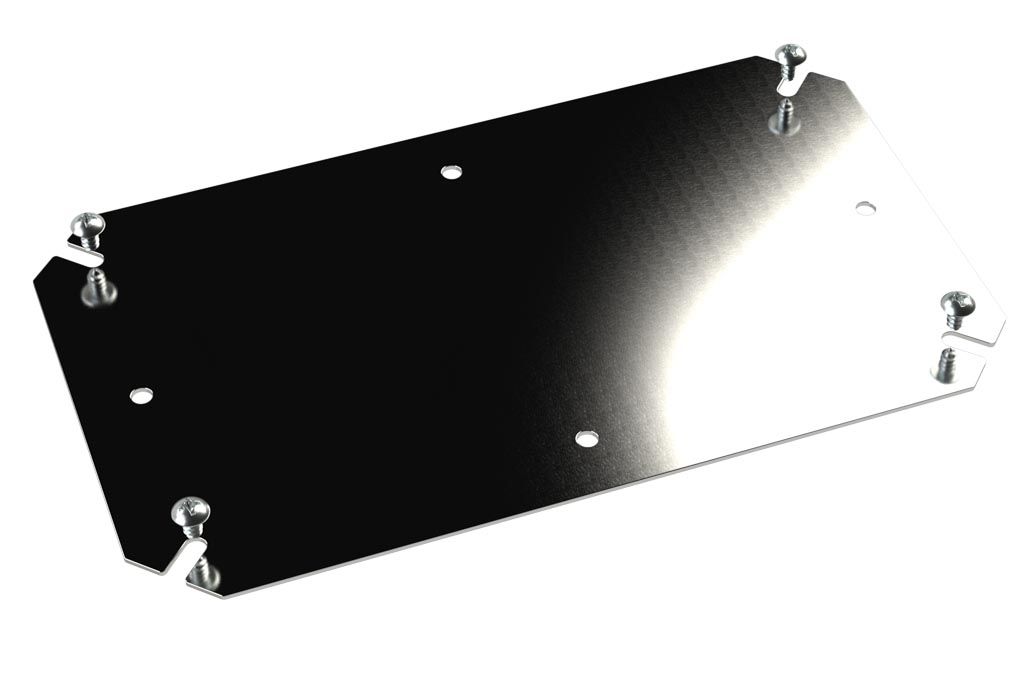

The HP-1006K aluminum internal mounting panel is designed for HP-100604 enclosure, and has 3 different options available. The standard panel kit (Part # HP-1006K-01) mounts to the standard mounting bosses in the bottom of the enclosure base. The hinged panel kit (Part # HP-1006K-02) allows for assembly at any depth within the base while also providing the advantage of being able to swing open for easy access to internal components. The suspension panel kit (Part # HP-1006K-04) allows the panel to be suspended at any depth within the base - unlike the hinged panel configuration, the suspension panel is designed to be stationary rather than swing open.
