Part
HD-58K-01
External Dimensions 7.54 x 4.76 x 0.06 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $11.75
10 - 49 $9.87
50 - 99 $8.88
100 - 249 $7.90
250 - 499 $7.43
More
Part
HD-58K-01
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

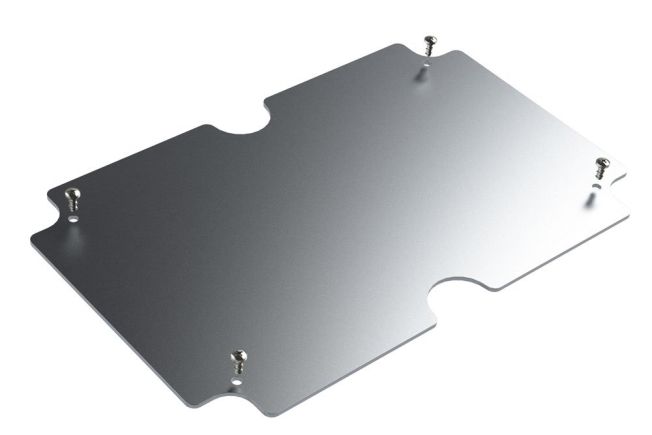

The HD-58K internal aluminum mounting panel, featuring a natural finish, comes with mounting screws and is designed to assemble to the mounting bosses in the base or cover of the HD-58F enclosure.
Specifications for
HD-58K-01
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
7.54 x 4.76 x 0.06 in
192 x 121 x 2 mm
Weight 0.21 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
Assembly Screws Steel
General
Series
Color Metallic
Country of Origin United States United States
Out-Of-Stock Lead Time Hover me Anticipated lead time if part is not in stock. Up to 3 weeks
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel and 4 screws

Downloads

Models & Drawings
3D Model HD-58K STEP
2D Drawing DWG HD-58K DWG
2D Drawing PDF HD-58K PDF

Enclosure Guide

Compatible Enclosures
HD Series NEMA Enclosures HD-58F
