DR-50 DIN Rail Kit

External Dimensions 2.95 x 1.38 x 0.30 in
In stock
Color Metallic
Qty Price / Unit
1 - 9 $5.73
10 - 49 $5.14
50 - 99 $4.79
100 - 249 $4.47
250 - 499 $4.15
Increase Down Increase Up
Product Overview

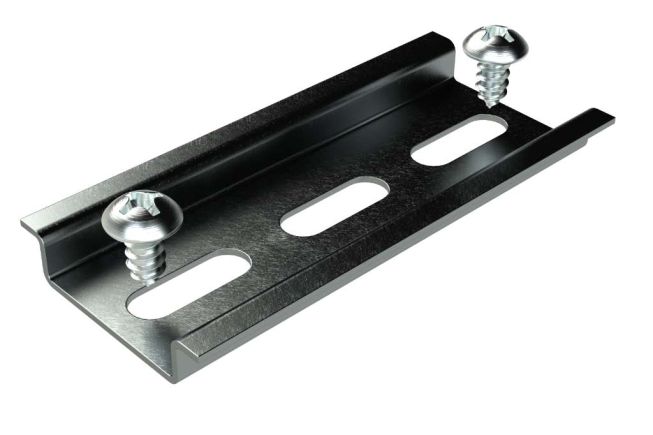

The DR-50 DIN rail kit is designed for mounting internal components securely along the width of the ZH-060404 and ZQ-060404, or along the length or width of the ZH-040404 and ZQ-040404 enclosures. It comes with: (1) 35 mm x 7.5 mm x 75 mm din rail and (2) screws for mounting inside the base of the enclosure.

Specifications for
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
2.95 x 1.38 x 0.30 in
75 x 35 x 8 mm
DIN Rail Length (mm) 75 mm
Weight 0.05 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
DIN Rail Steel
Assembly Screws Steel
Color Metallic
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 2 days
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Din rail and 2 screws


Models & Drawings
3D Model DR-50 STEP
2D Drawing DWG DR-xx DWG
2D Drawing PDF DR-50 PDF
Din Rail Cross Reference Guide Din Rail Reference Guide

Enclosure Guide

Compatible Enclosures
ZH Series (Installed Along Width) ZH-060404
ZQ Series (Installed Along Width) ZQ-060404
